CB Climbing Formwork in action
-

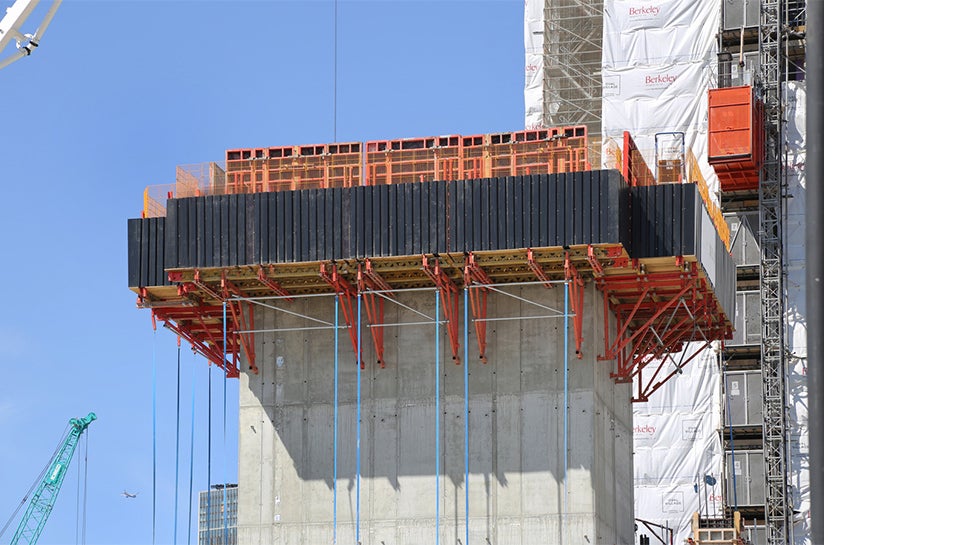

![Large scaffold units of the securely assembled units consisting of platform and formwork in only one crane lift.]( "Oval Village")
Large scaffold unitswith simultaneous high load assumptions through the high loading capacity of the brackets.
-

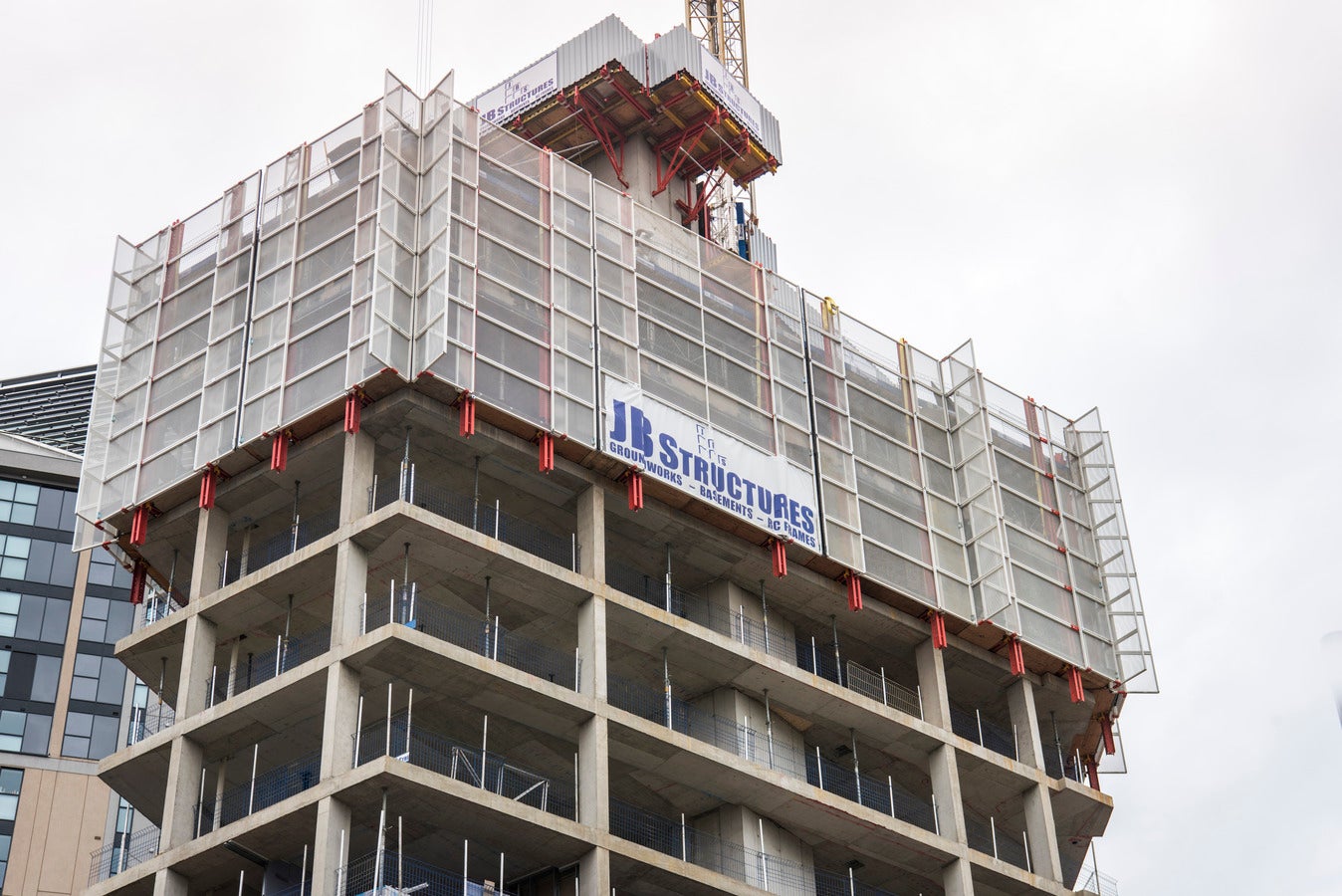

![Time-saving moving procedure of the securely assembled units consisting of platform and formwork in only one crane lift]( "Newington 87 Causeway")
Time-saving moving procedureof the securely assembled units consisting of platform and formwork in only one crane lift.
-

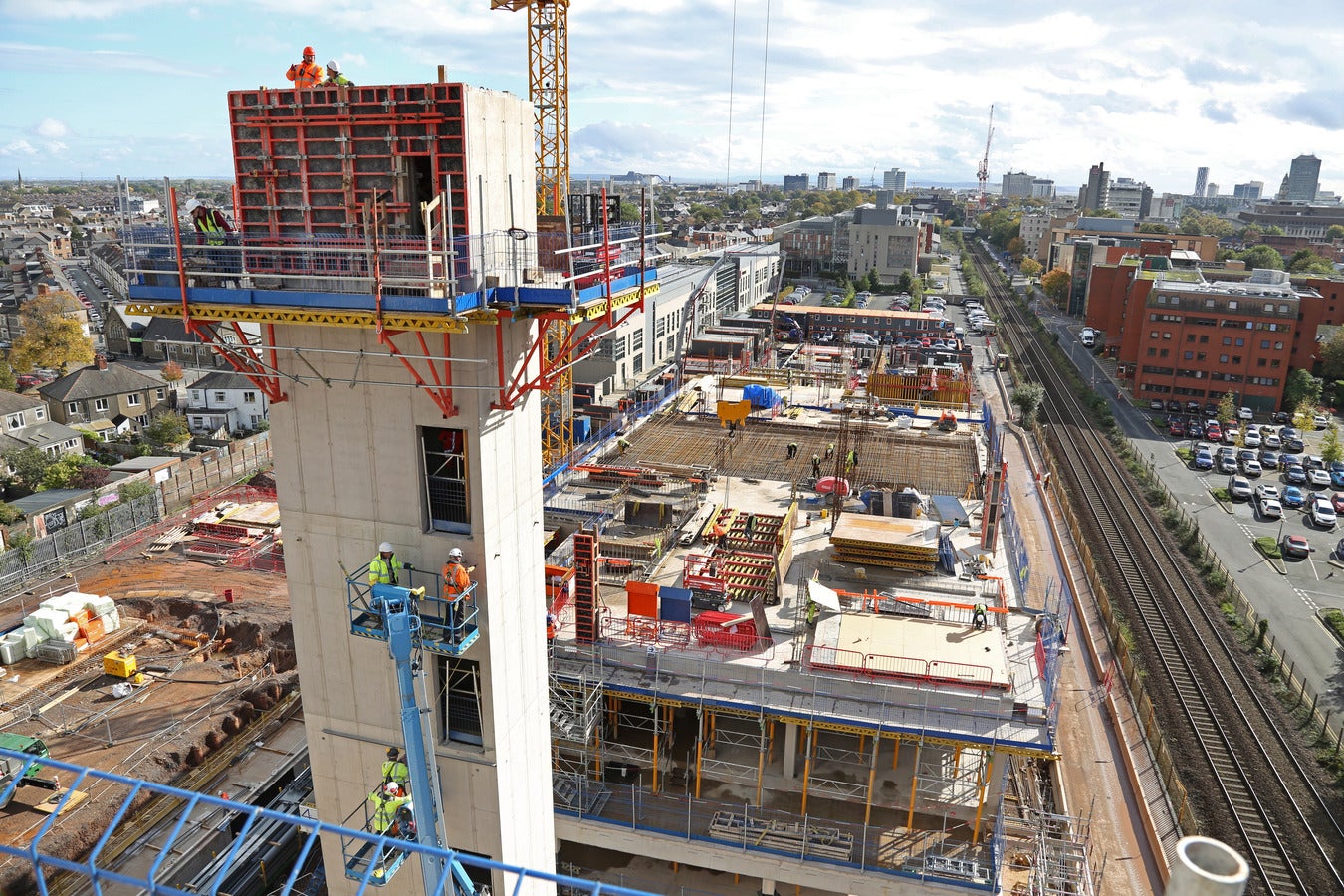

![Free of tripping hazards in front of and behind the formwork as the platform lining is placed over the brackets (valid for CB 240)]( "Cardiff University - Innovation Campus")
Free of tripping hazards
in front of and behind the formwork as the platform lining is placed over the brackets (valid for CB 240).
Product Data Sheet
Product Data Sheet
System type
Climbing Formwork
Dimensions
Height: Type static for formwork heights up to 5.40 m
Area/Support
Shoring for supporting anchored wall formwork; alternatively, purely as working scaffold
Other
Finishing platform with ladder provides access to the wall
Variations
CB 240 Climbing Formwork
Bracket width 2.40 m with carriage (75 cm retraction distance), strongback and an adjustable brace
CB 160 Climbing Formwork
Bracket width 1.60 m with adjusting unit, strongback and adjustable brace
Interested in using CB Climbing Formwork for your project?
Call us on +1 410-712-7225 to discuss your requirements further.
