Applications
-
Watch the video to find out more
-
PERI DUO Column Formwork Customer Review

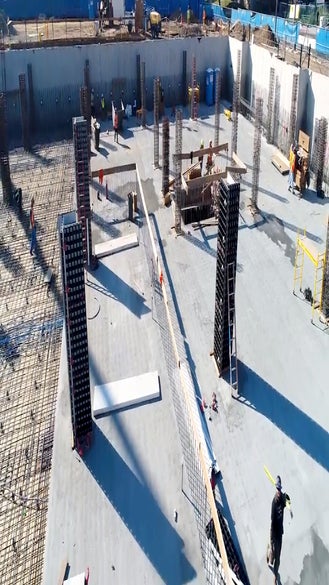

Public Works Building, Santa Ana, CA -

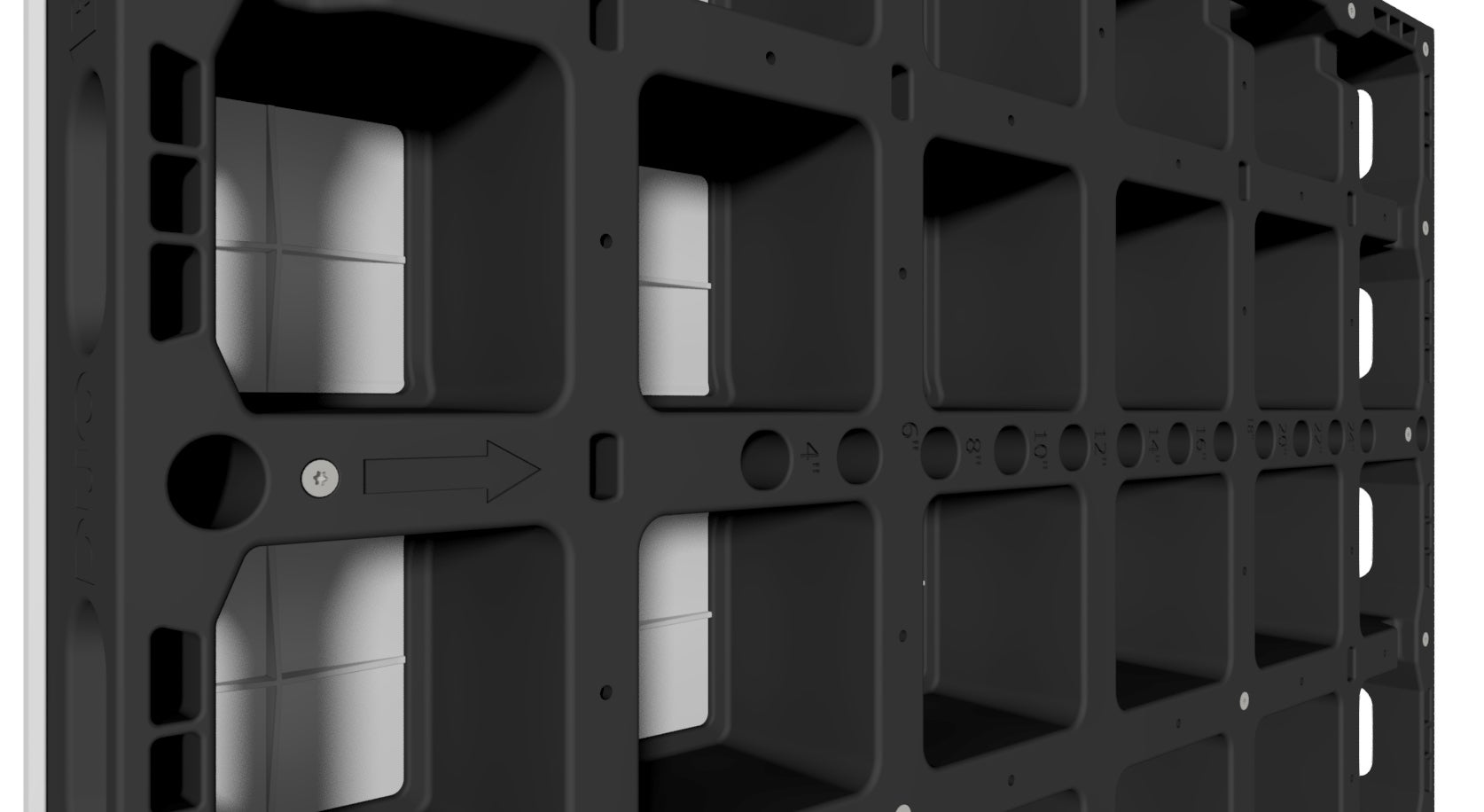

![No measuring needed due to imprinted imperial column dimensions in 2“ increments. Corner connectors attach in seconds. Watch the video (in the second tab) to see how the column is assembled.]( "Easy Size Adjustment")
Easy size adjustmentNo measuring needed due to imprinted imperial column dimensions in 2“ increments. Corner connectors attach in seconds. Watch the video (in the second tab) to see how the column is assembled.
-

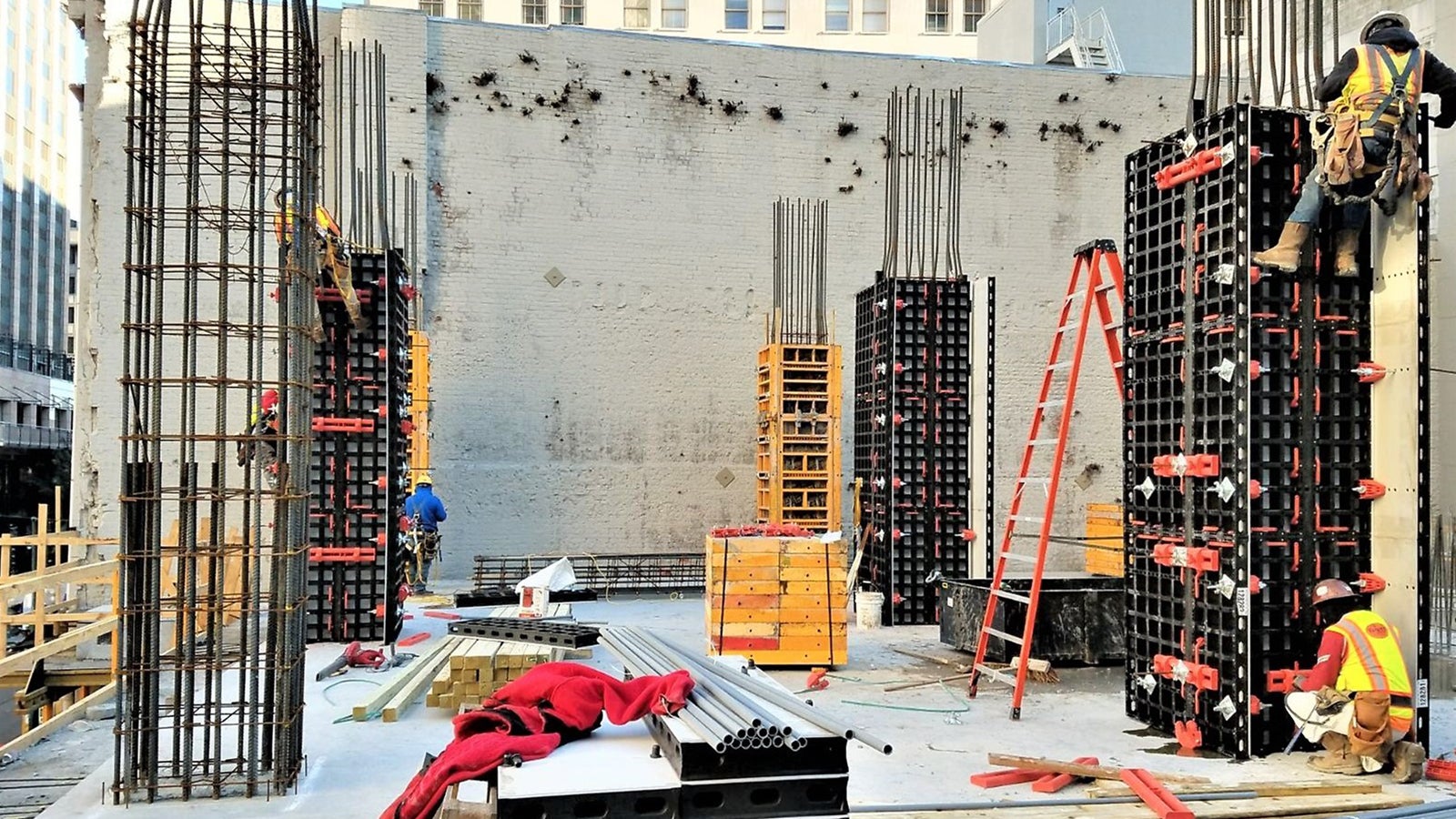

![In a side by side comparison, DUO was exponentially more productive and efficient than competing systems]( "Fast")
Fast
In a side by side comparison, DUO was exponentially more productive and efficient than competing systems.
-

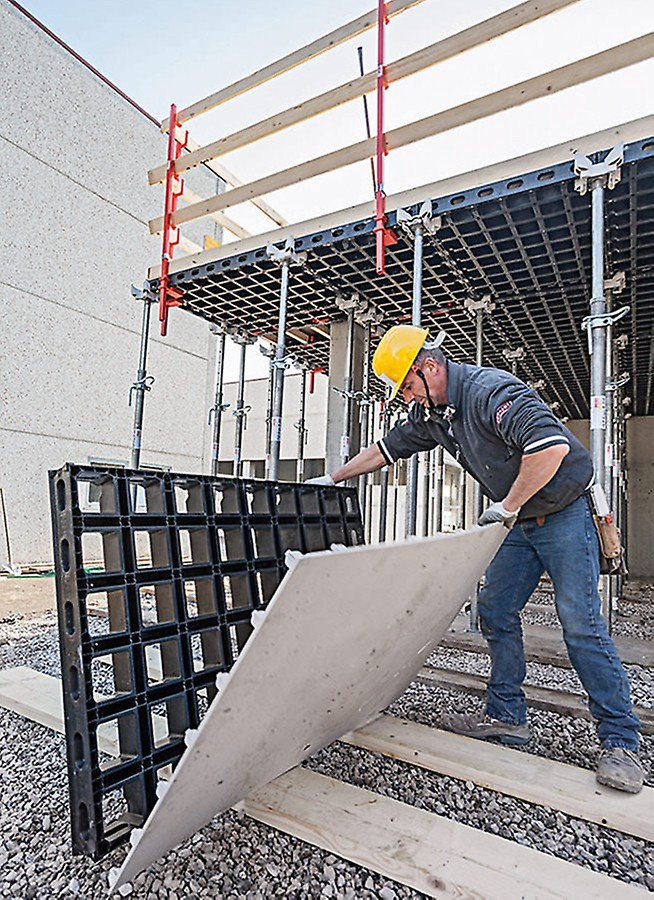

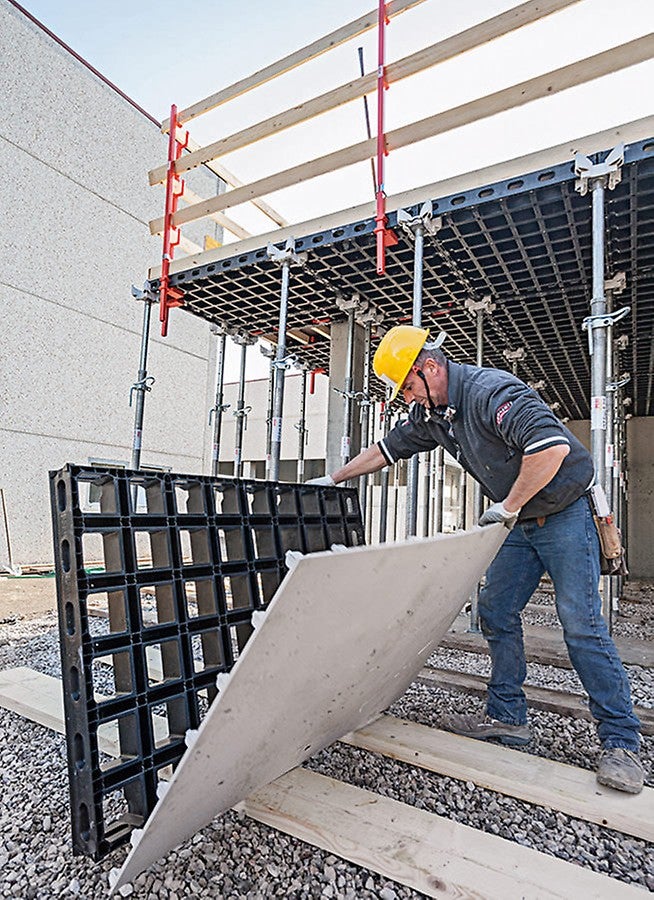

![The replacement formlining can be mounted by hand using only a few screws – also on the construction site and without any special tools.]( "DUO Universal formwork")
Longer life liningThe formwork lining can be used up to 100 times and is easily replaced.
Product Data Sheet
System type
System formwork (foundations, walls, ceilings, beams and columns)
Dimensions
Element widths: For columns from 4“ up to 24“. It can be adjusted in 2 inch increments,
Panel sizes: 3‘ (W) x 4 ½ ‘ (H) and 3‘ (W) x 2‘ (H)
Fresh concrete pressure
1650 psf
Material
Polymer-based composite material
Formlining
Polypropylene
Fulfilled standard
Basically for all applications: flatness according to DIN 18202, table 3, line 6
Weight
4.5 lbs / ft²
Other
Particularly light panel formwork for vertical and horizontal formwork. High resistance to almost all environmental influences. Recyclable. Low-noise construction without a hammer.
Apps and tools
PERI QuickSolve
Experience the efficiency and versatility of our DUO formwork system firsthand.
