DUO in action
-
Watch the video to find out more
-
McCarthy Review of PERI DUO Handset Formwork System | Missouri, USA

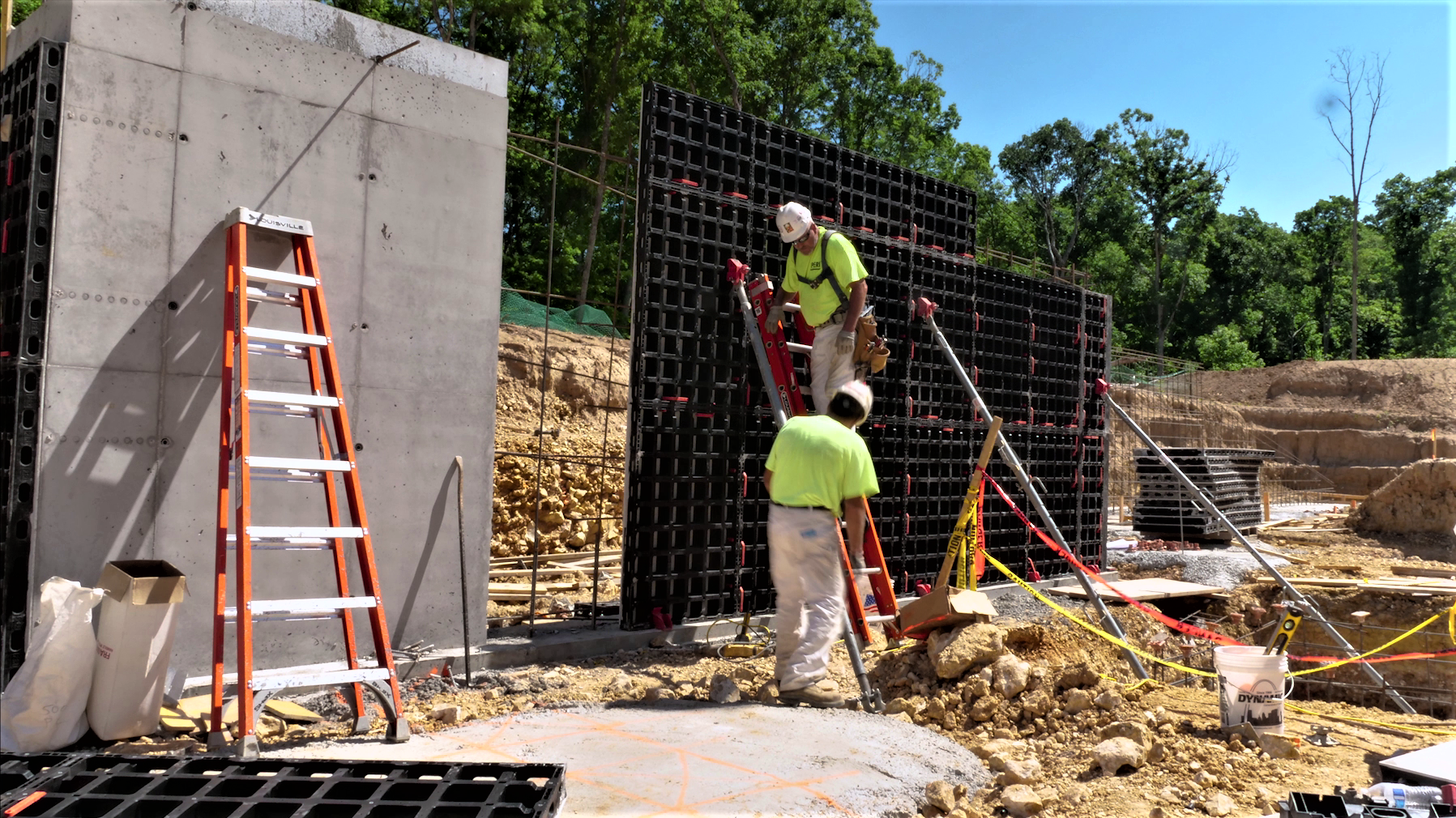

Providing A Home For A St. Louis Hero With PERI DUO Formwork -

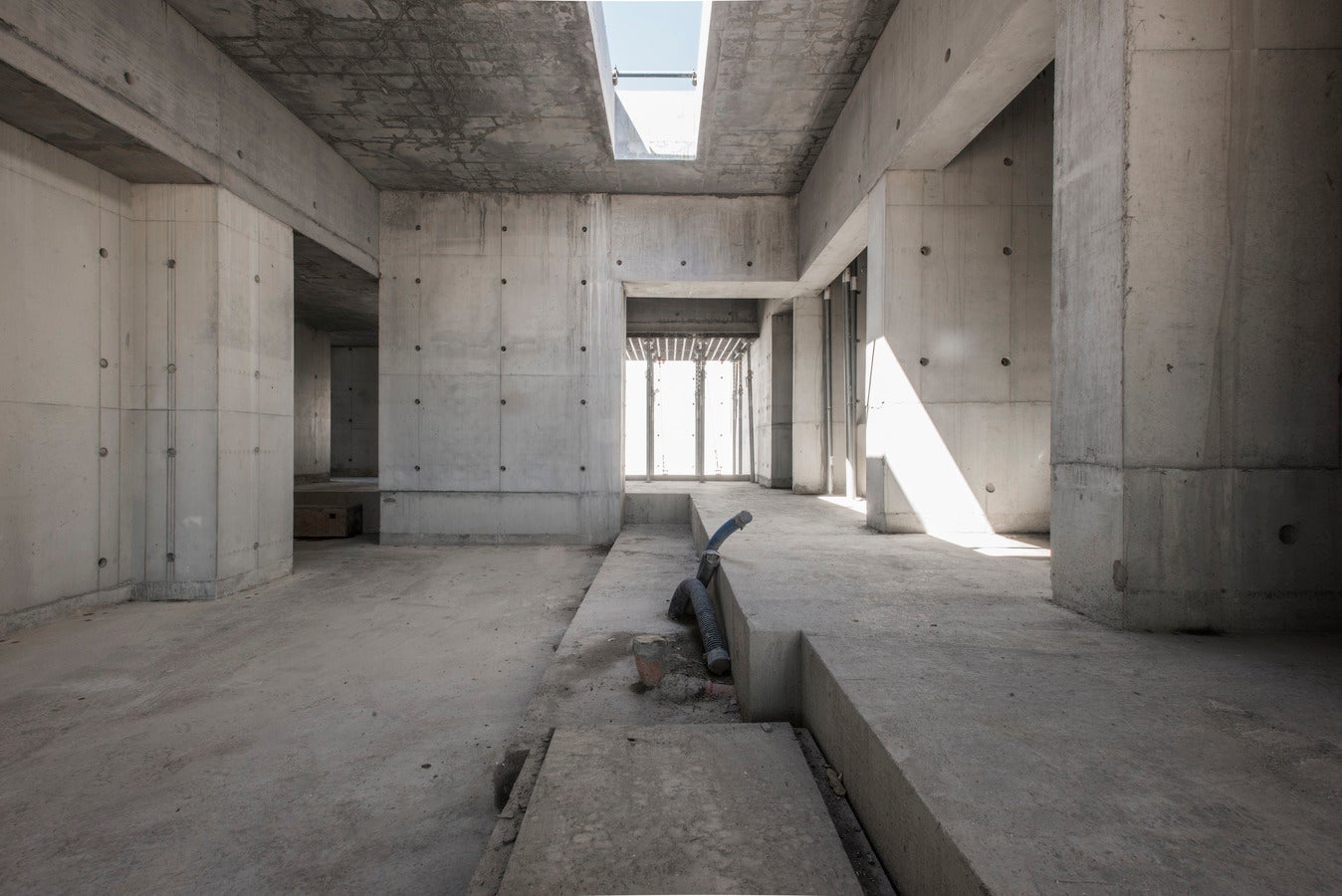

![DUO’s lightweight design makes it easy to handle on-site.]( "Concrete House")
Maximised durability and manoeuvrabilityDUO’s lightweight design makes it easy to handle on-site.
-

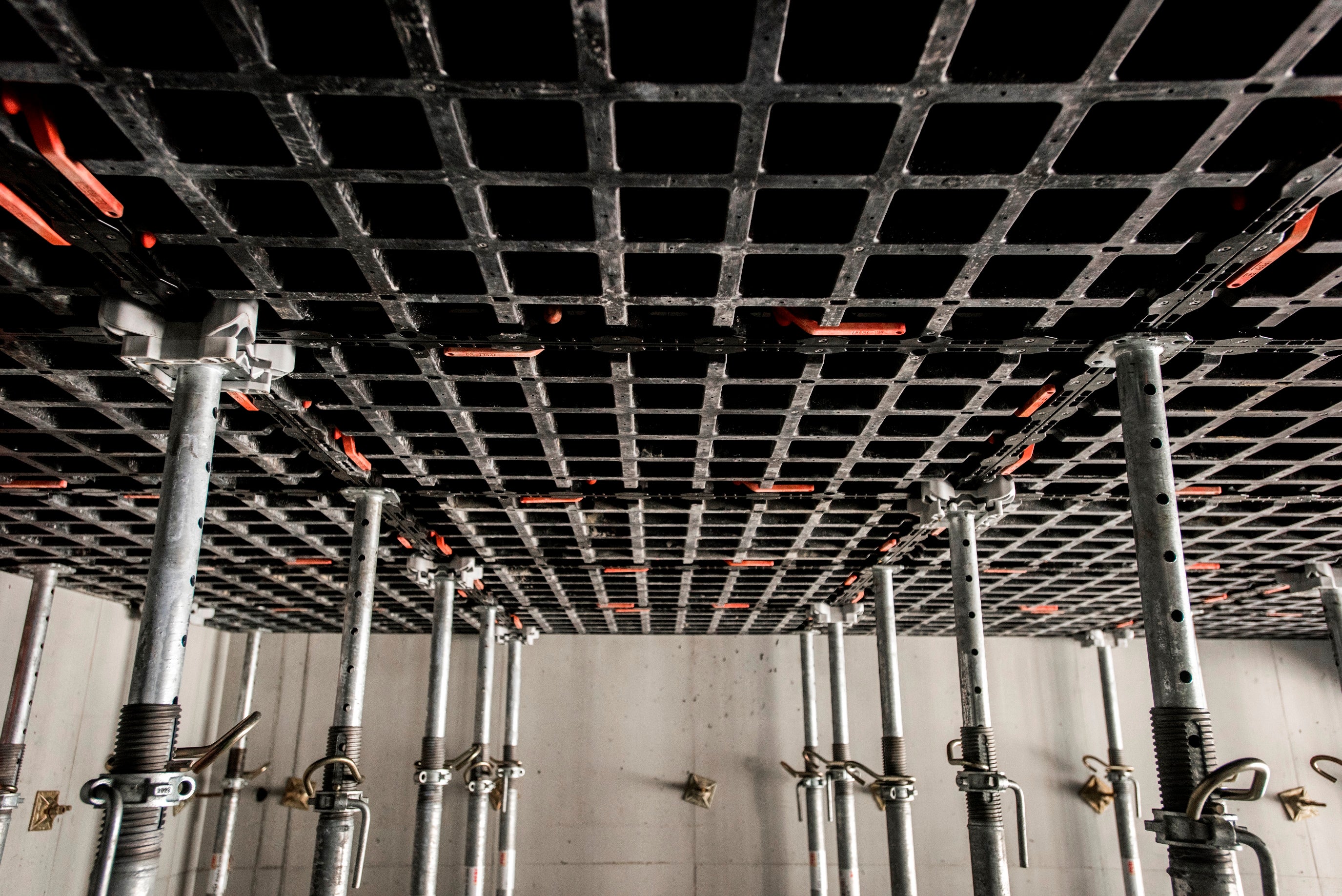

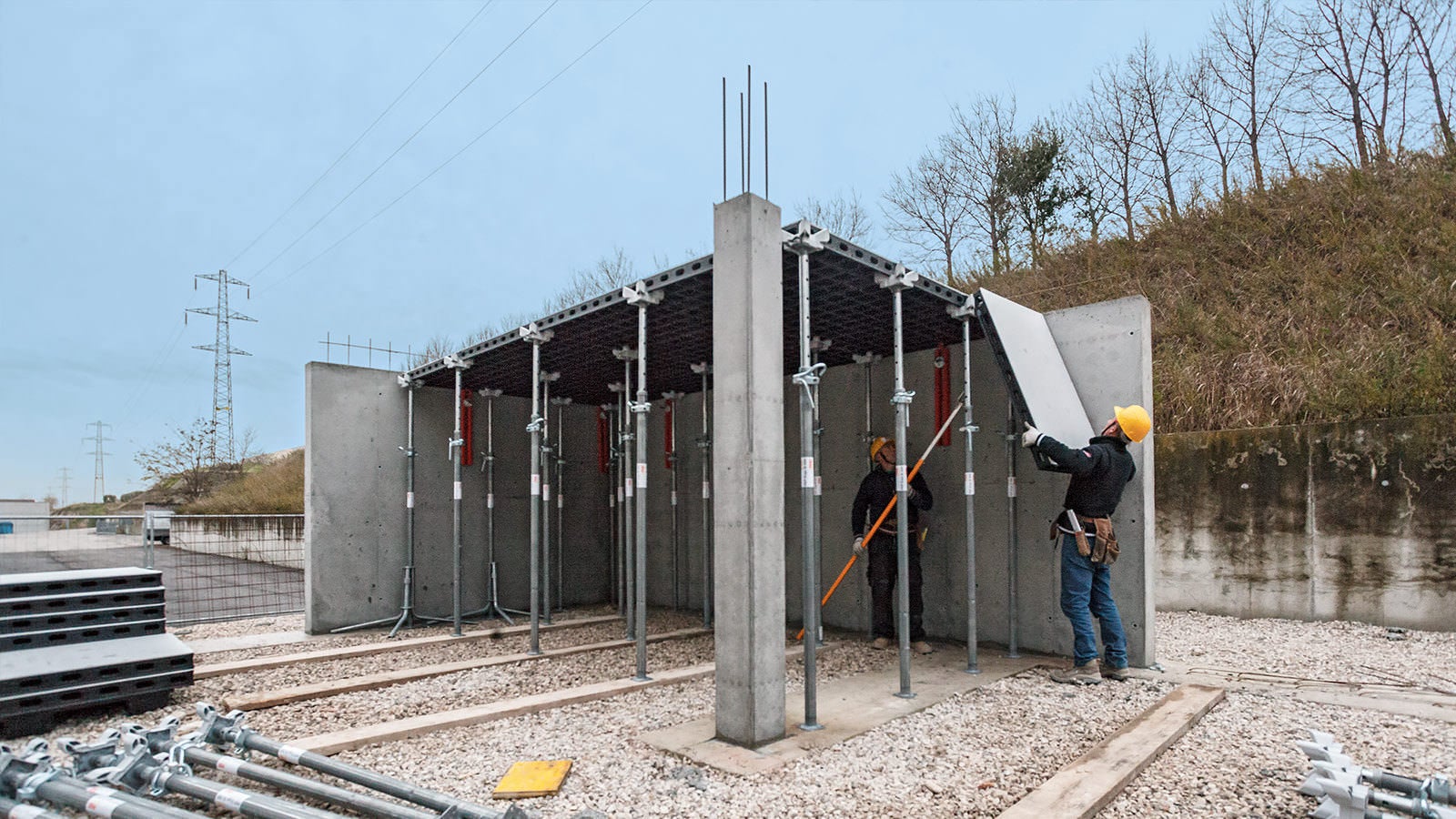

![When forming the slab, work is completely carried out from a safe position below; the panels are simply hooked in and then pivoted upwards.]( "DUO universal formwork")
Ease of use
PERI has designed DUO to be simple to use and intuitive as possible. When forming the slab, work is completely carried out from a safe position below; the panels are simply hooked in and then pivoted upwards.
-

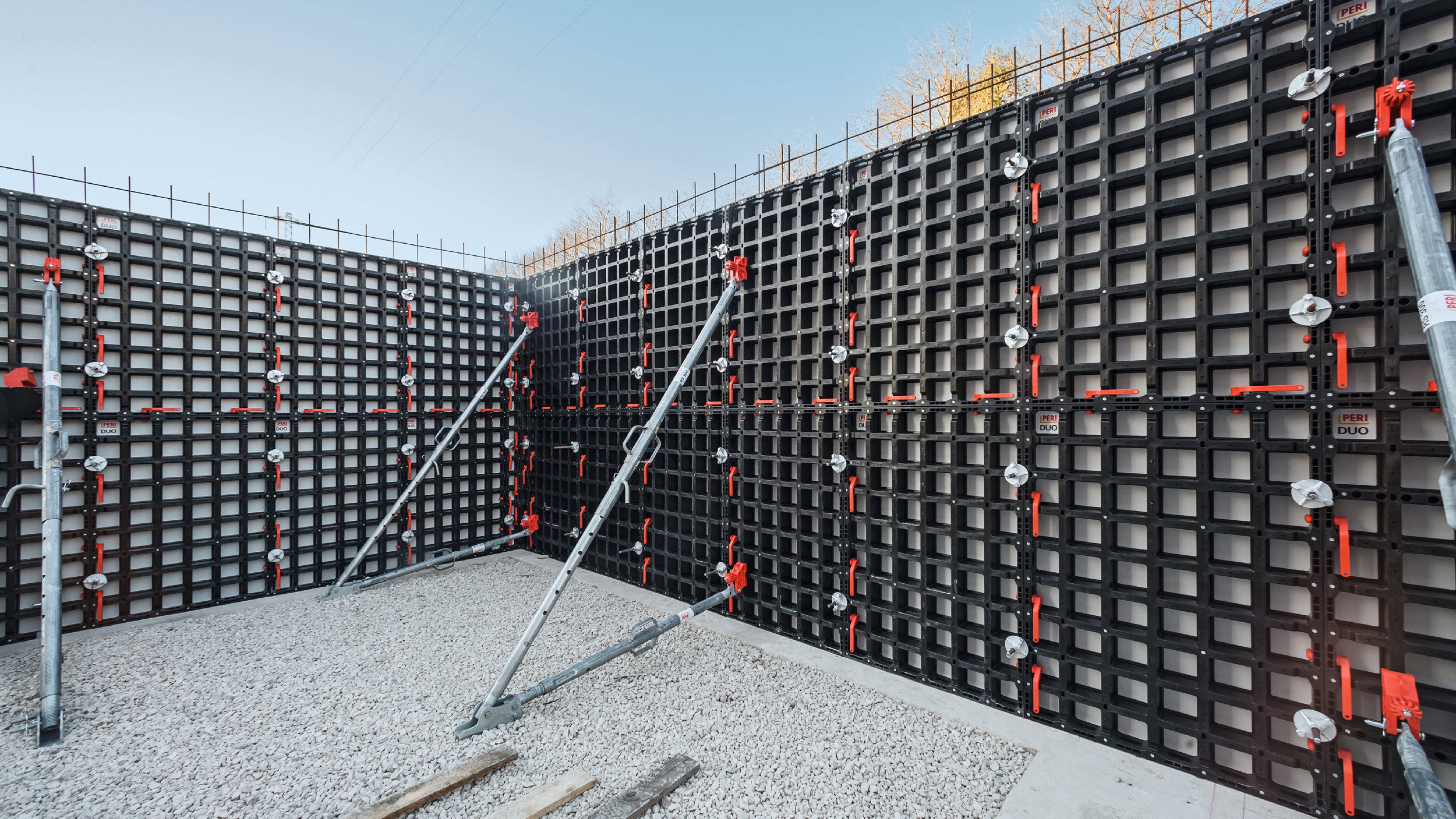

![DUO is a lightweight, yet strong and durable innovative technopolymer formwork system with no component part weighing more than 25kg.]( "DUO formwork for wall construction")

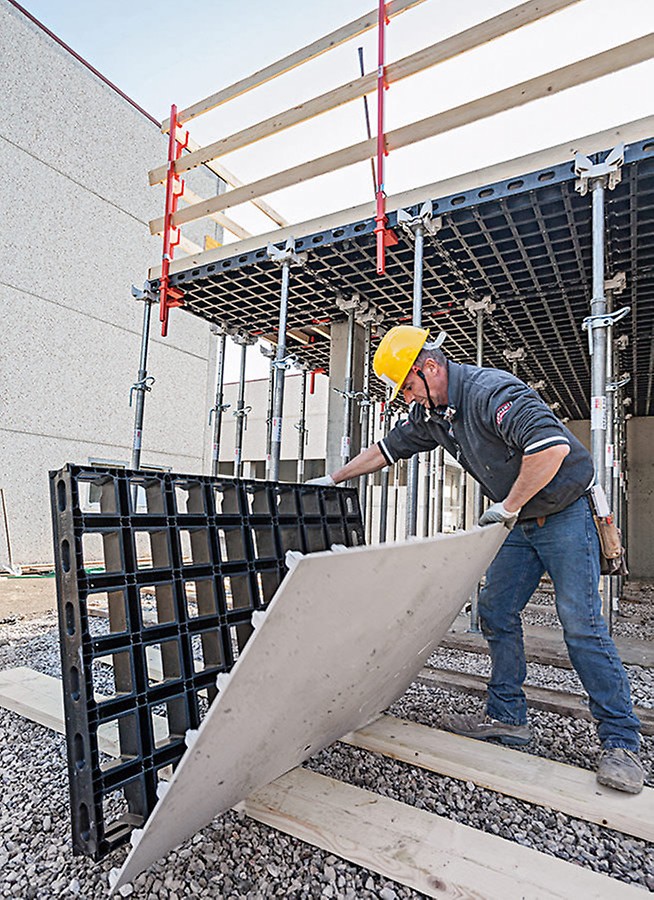

Longer life liningThe formwork lining can be used up to 100 times and is easily replaced.
Product Data Sheet
System type
System formwork (foundations, walls, ceilings, beams and columns)
Dimensions
Element heights: 0.60 m | 1.35m,,
Element widths: 0.10 m | 0.15m | 0.30m | 0.45m | 0.60m | 0.75m | 0.90m,
Realizable column cross sections: 0.10 m | 0.15m | 0.30m | 0.45m | 0.60m | 0.75m | 0.90m
Fresh concrete pressure
0.10 m | 0.15m | 0.30m | 0.45m | 0.60m | 0.75m | 0.90m

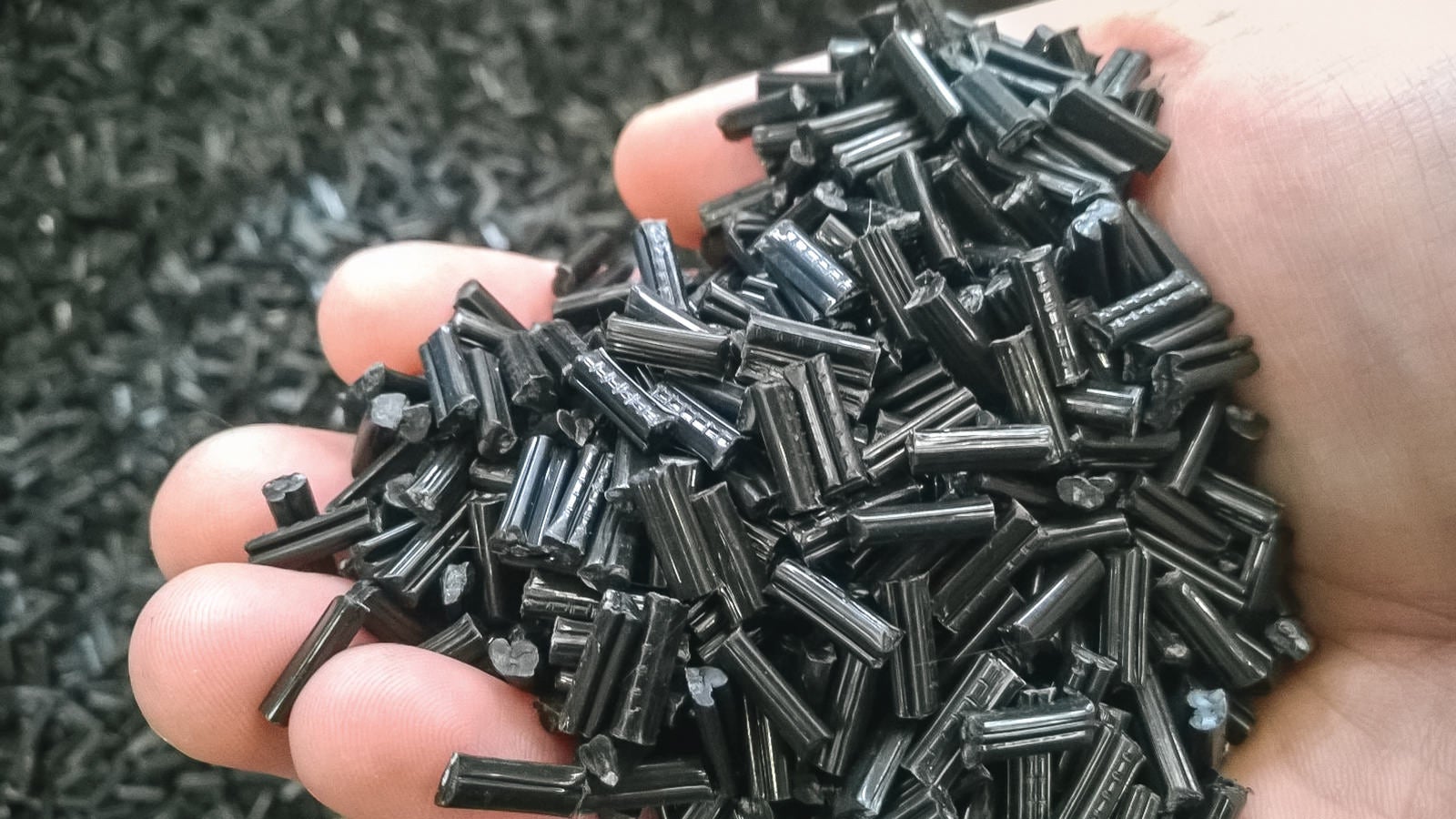

Material
Polymer-based composite material
Formlining
Polypropylene
Fulfilled standard
Basically for all applications: flatness according to DIN 18202, table 3, line 6
Slab thickness
Max. permissible ceiling thickness 30 cm according to DIN EN 12812
Weight
23.5 kg/m²
Other
Particularly light panel formwork for vertical and horizontal formwork. High resistance to almost all environmental influences. Recyclable. Low-noise construction without a hammer.
Apps and tools
PERI QuickSolve
Additional information
Experience the efficiency and versatility of our DUO formwork system firsthand.
