MAXIMO in action
-
Find out moreWatch our latest video on MAXIMO
-
![The special MX tie is installed from one side only and is used without spacer tubes and cones. As a result, both material requirements and costs are reduced as well as saving time.]( "MAXIMO Panel Formwork")

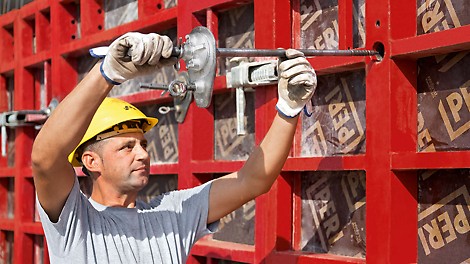

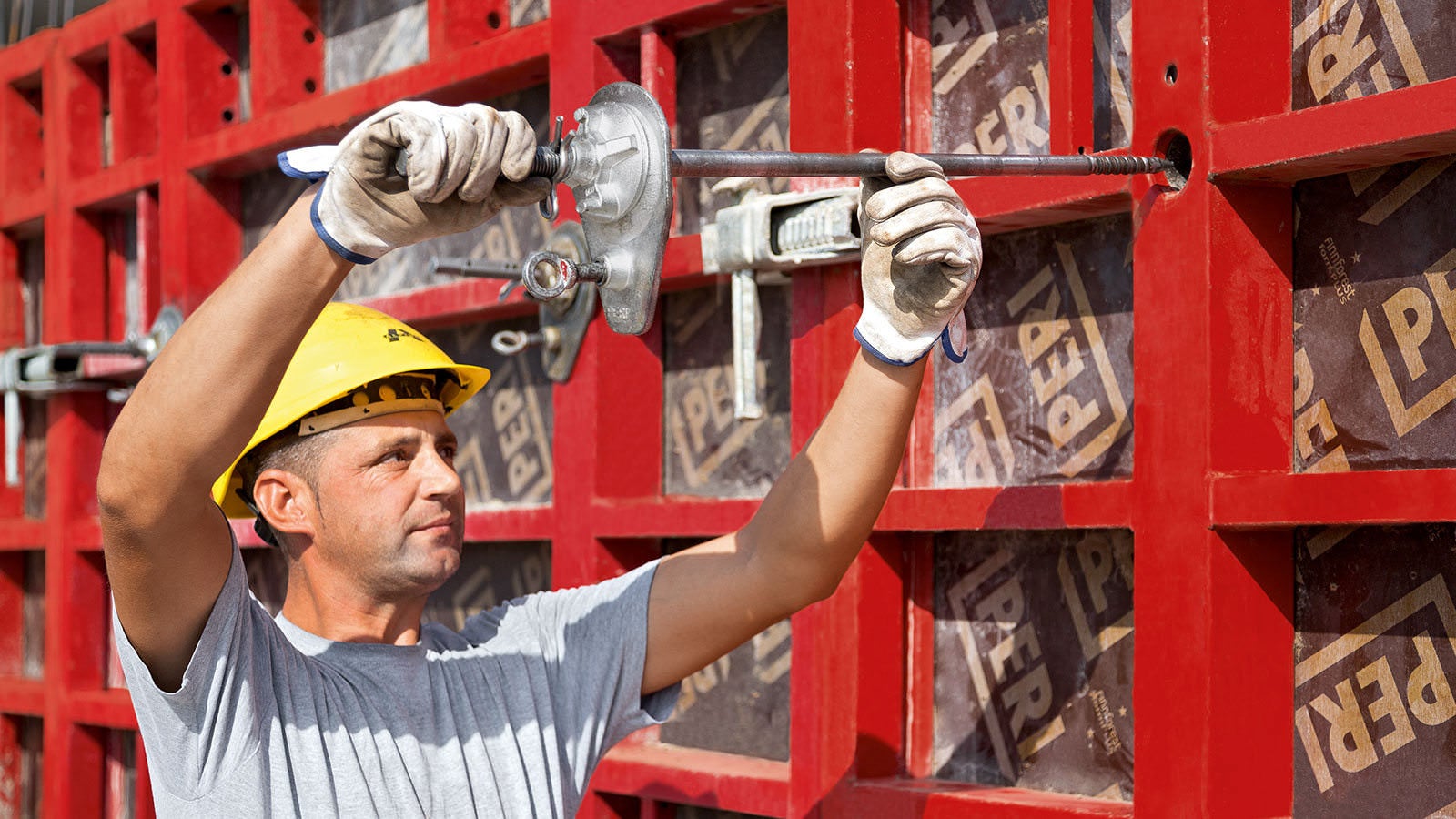

Faster tie installationThe special MX tie is installed from one side only and is used without spacer tubes and cones. As a result, both material requirements and costs are reduced as well as saving time.
-
![MAXIMO in use on the ROM Dome Tunnel]( "MAXIMO - ROM Dome Tunnel")

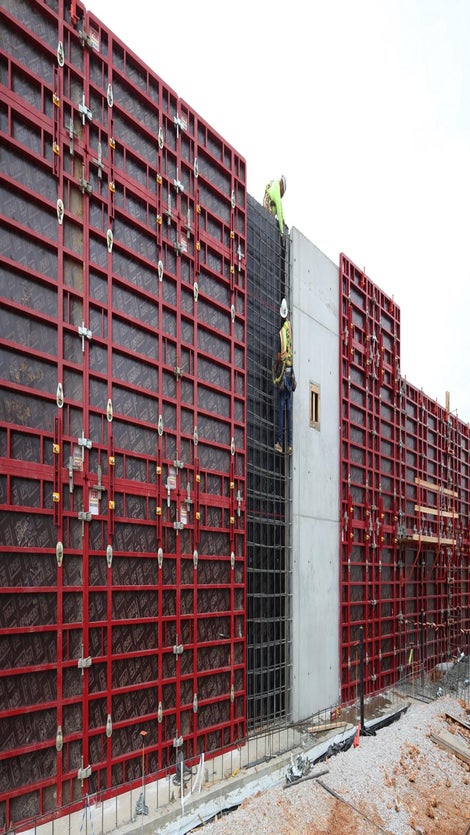

Improved concrete finishThe defined arrangement of individual MAXIMO panels allows the visually appealing design of concrete surfaces with a clean concrete finish without any impressions due to unused tie holes or the occurrence of concrete bleeding through non-sealed tie points.
Product Data Sheet
Apps and tools
PERI QuickSolve
System type
Panel Formwork
Dimensions
Element heights: 2.70 m | 3.00 m | 3.30 m | 3.60 m,
Element lengths: 0.30 m | 0.45 m | 0.60 m | 0.90 m | 1.20 m | 2.40 m,
Extension heights: 0.30 m | 0.60 m | 0.90 m | 1.20 m
Material
Steel
Formlining
Finply 18 mm or all-plastic formlining
Installation time
Individual element - single and multiple use: 0.20 - 0.38 h/m², combination - single and multiple use: 0.15 - 0.23 h/m²
Anti-corrosion and surface coating
High level of corrosion protection thanks to internal strip galvanizing and cavity preservation. Powder coating of the element frames prevents concrete from sticking and makes cleaning easier. Hot-dip galvanized and powder-coated versions available
Fulfilled standard
Flatness according to DIN 18202, table 3, line 7
Tie technology
One-sided MAXIMO anchor technology MX 15 and MX 18. Alternatively: Anchors that can be operated from both sides, such as DW 15 or DW 20.
Tie sealing technology
Screw plug system, rivet plug system, fiber concrete system DK, reliable closure technology with test certificates for a wide range of technical requirements and surface designs.
Connection technology
Main connecting part: BFD Alignment Coupler (flush, flush, tight), also suitable for stacking up to 5.40 m, compensations up to 10 cm, wall projections, corner solutions and end formwork.
Safety
MXK bracket system, MXP platform, MX counter railing holder.
Support
RS and trestle.
Compatible with
RUNDFLEX circular formwork, SRS circular steel column, TRIO panel formwork.
Variations
-

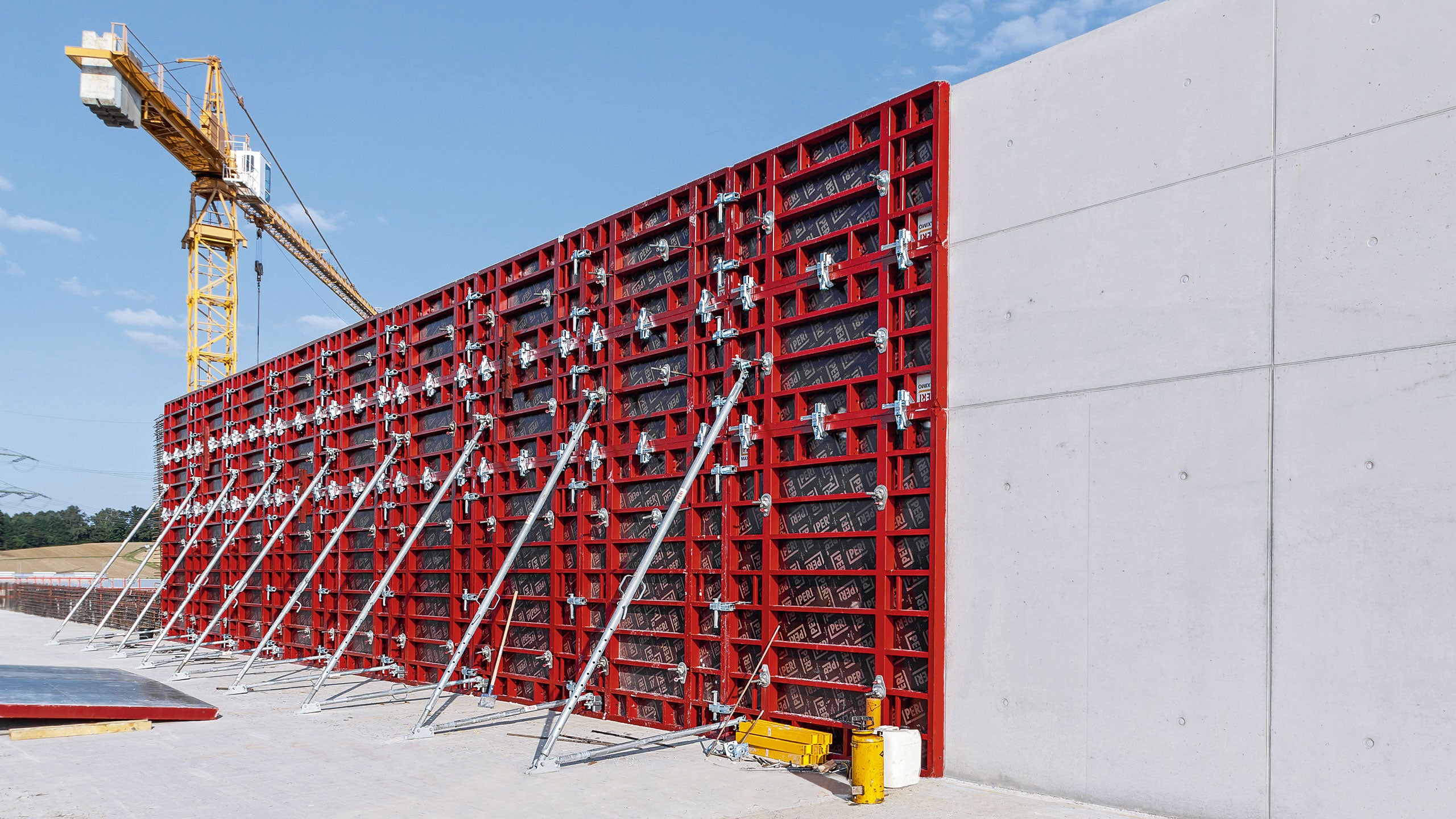

![Photo of the PERI Maximo Formwork system being used to form a concrete wall on a construction site.]( "Maximo")
MAXIMO 300 / MAXIMO 360MAXIMO Panels as well as internal corners and shaft elements are available with heights of 3.00 m and 3.60 m, too. These additional panel heights are available on request and guarantee additional time savings for larger floor heights, for example, in high-quality residential construction or even for underground garages. The 3.00 m high panels only require 2 anchors which ensures further savings of time. The MX 18 Anchor System is used for wall thicknesses of up to 60 cm.
