PERI UP Flex Stair 100/125 in action
-

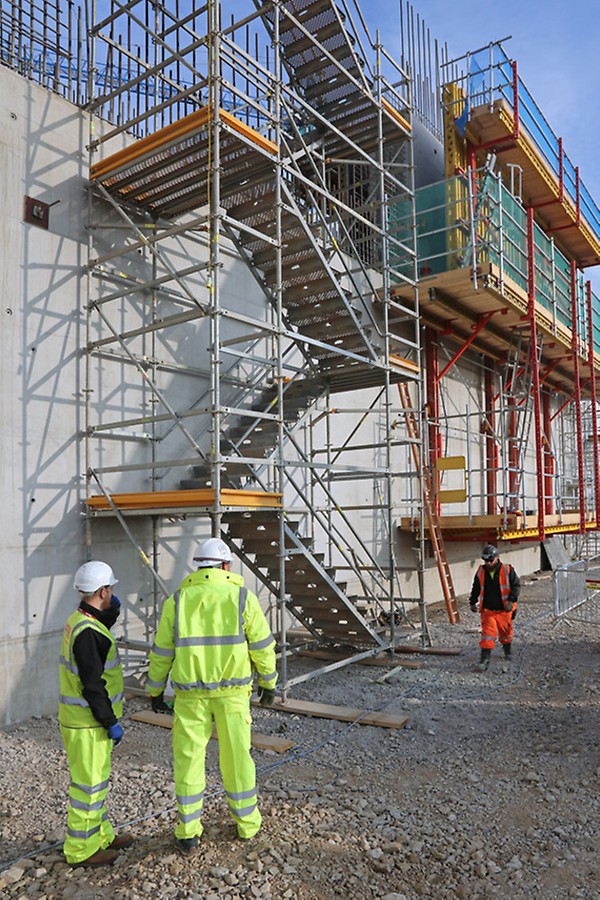

![High load-bearing capacity designed for loads of 3.00 kN/m² for a run of staircase and landing of 20 m.]( "Rolls Royce")
High load-bearing capacityDesigned for loads of 3.00 kN/m² for a run of staircase and landing of 20 m.
-

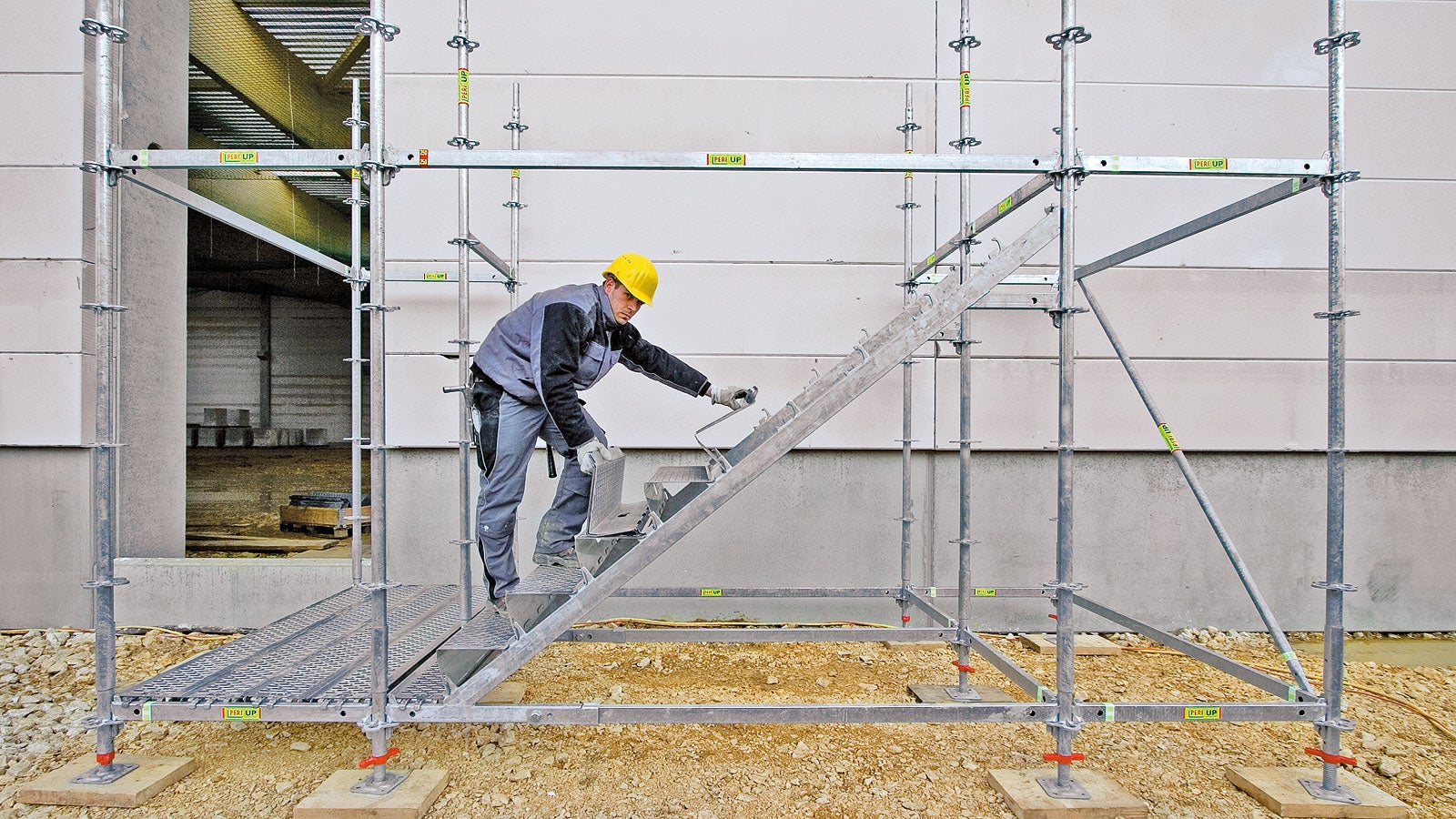

![PERI UP Flex Stair Steel 100,125: The lightweight individual steps are quickly installed: they interlock during assembly and secure automatically.]( "PERI UP Flex Stair 100 / 125")
Erection without the use of toolsThe lightweight individual steps are quickly installed: they interlock during assembly and secure automatically.
-

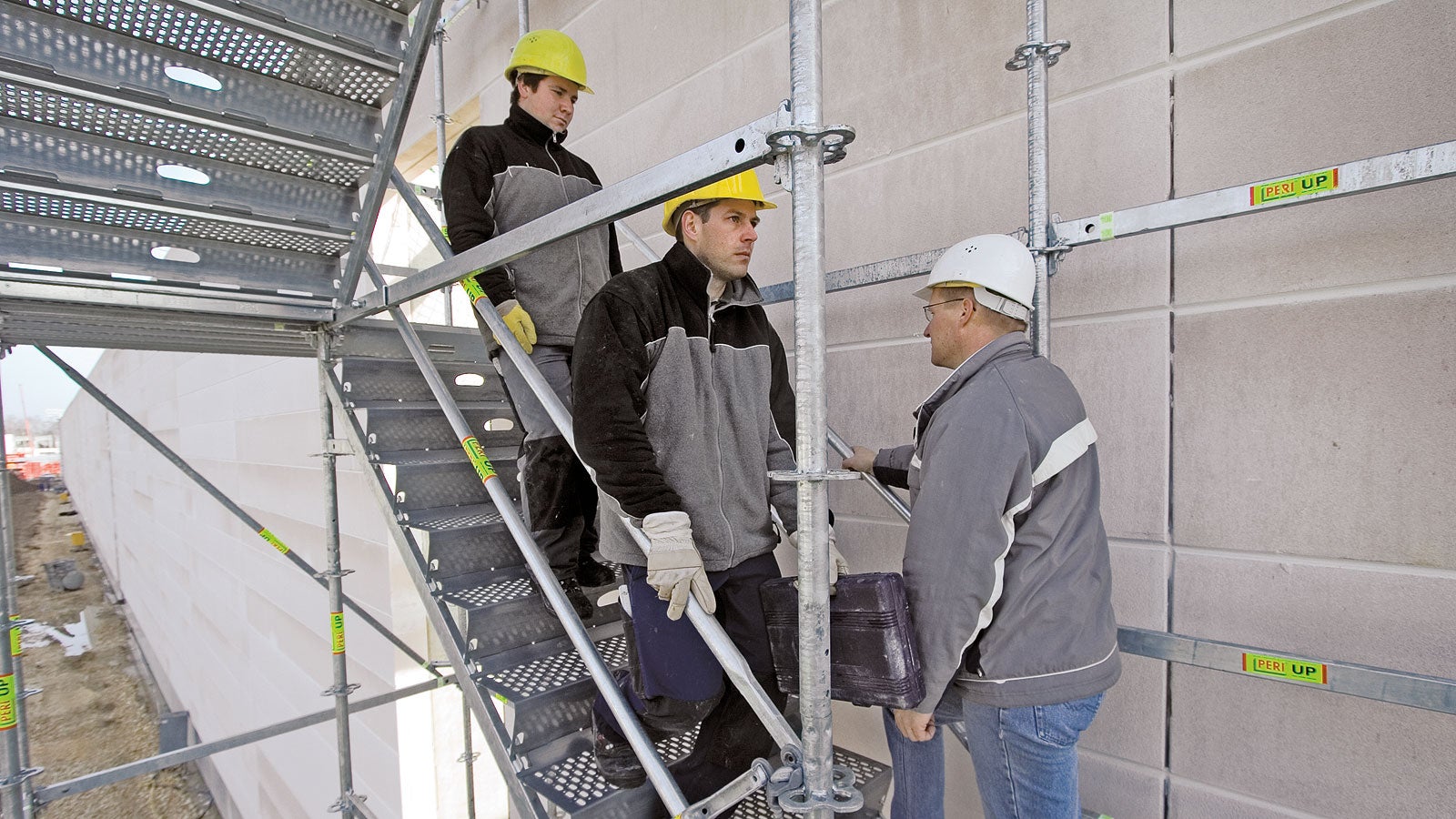

![PERI UP Flex Stair Steel 100,125: Site personnel meeting on the Site Staricase Steel 100 can easily pass each other.]( "PERI UP Flex Stair 100 / 125")
With conveniently-sized widthsSufficient space for site personnel to pass each other, transporting materials and evacuating injured persons.
Product Data Sheet
Scaffold type
Scaffolding Stairs
Dimensions
Element widths: Staircases comprised of stringers and individual stair treads with 100 cm or 125 cm widths (clear stair widths of 96 cm or 121 cm),
Element heights: Can be used as staircase units in the same direction or alternating staircase units with 2.00 m up to 50.00 m assembly heights,
Floor plans: 2.00 m x 4.50 m (Staircase Steel 100) or 2.50 m x 5.00 m (Staircase Steel 125)
Type of use
Access technology
Body heights
According to the rules: up to 50 meters (steel 100) up to 40 meters (steel 125)
Scaffolding grid
Metric
Type of pavement
Steel
Structure principle
The next step is firmly connected to the previous step by inserting and turning
Approval
Standard design according to EN 12810
Norm
DIN EN 12810 and 12811; load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Permissible load
3.00 kN/m² for flights of stairs or 40.0 kN for the entire construction or 3.0 kN/m² for a run of staircase and landing of 20 m
Other
Adjustments to the building: 1.0 m height adjustments in the tower Flexible height adjustments via clamp rosette and bolt
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
Other
Horizontal ledger can be mounted in advance; Gravity Lock secures ledgers as soon as they are inserted into the scaffolding node; integrated pad protection; Use of standard handles with pressed-in tubular pins
