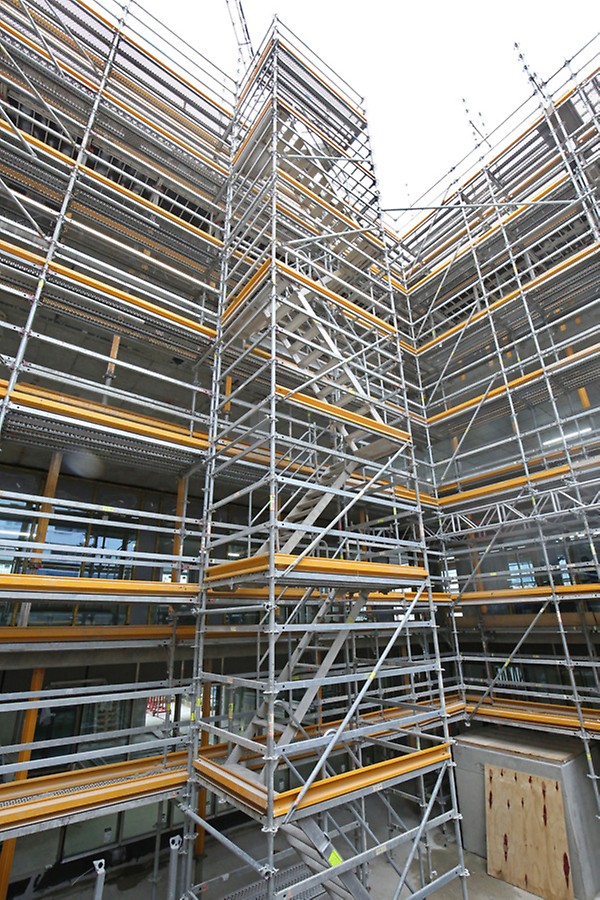

PERI UP Flex Stair 75 in action
-

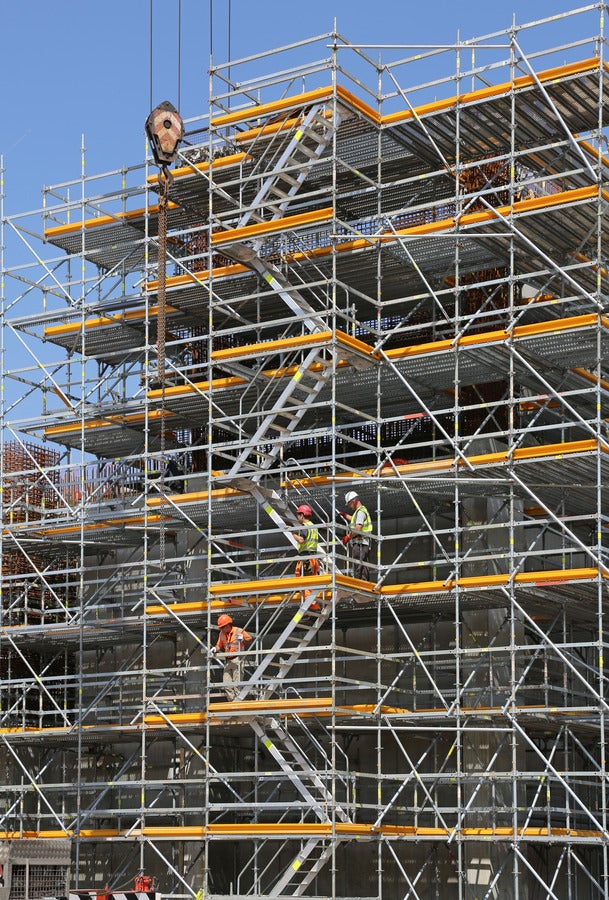

Easily adapted
for accessing building openings with brackets and small flights of stairs – regardless of storey heights.
-

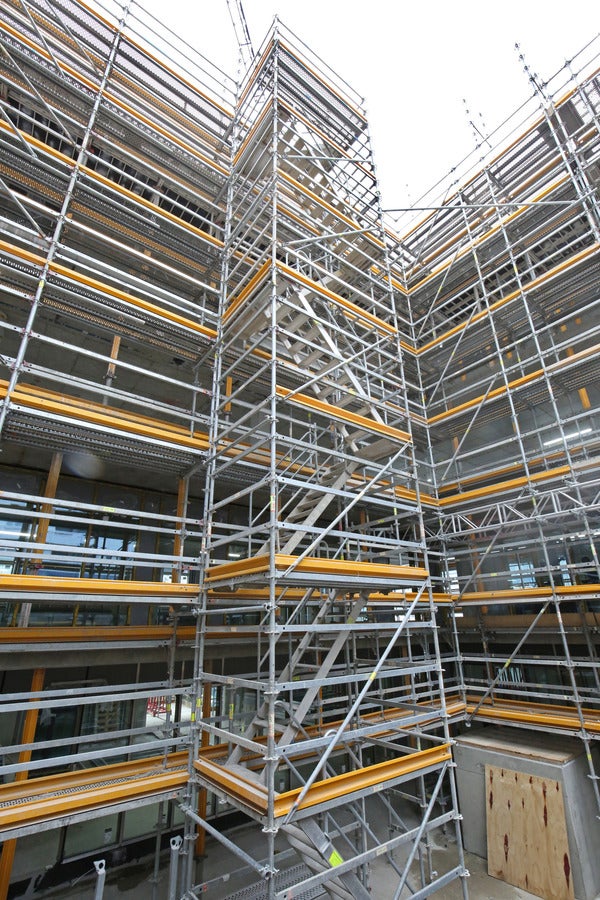

Flexible assembly
through the 25 cm grid dimension, all bays can be completely closed even in the smallest of spaces.
Short flights of stairs with 75 cm widths offer maximum adaptability also for small areas and narrow geometries.
-
Fast installation
with only a minimum number of ledgers and anchors.
Product Data Sheet
Scaffold type
Scaffolding Stairs
Dimensions
Floor plans: 0.75 m x 0.75 m/0.50 m; 0.75 m x 1.50 m/0.50 m | 0.75 m x 1.50 m/1.0 0m; 0.75 m x 2.50 m/2.00 m | 0.75 m x 3.00 m/2.00 m
Weight
Vertical meters in opposite directions in a 2.50 m variant: approx. 85 kg | Vertical meters in the same direction in a 3.00 m variant: approx. 115 kg
Type of use
Access Technology
Body heights
According to the rules: up to 66 meters, beyond that: proof in individual cases
Scaffolding grid
Metric
Structure principle
With integrated stair safety without additional components
Approval
Standard design according to EN 12810
Norm
DIN EN 12810 and 12811; load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Permissible load
For flights of stairs and coverings: 2.50 kN/m², for the entire construction up to 66 m: 2.0 kN/m² over a run length of 20 m
Other
Adaptations to the building: 1.0 m and 0.5 m height adjustments via console or in the tower 0.2 m height adjustments via stair bars, counter-rotating and co-rotating stair tower as a means of access for temporary work at high workplaces; Horizontal ledger can be mounted in advance; Gravity Lock secures ledgers as soon as they are inserted into the scaffolding node; integrated pad protection; Use of standard handles with pressed-in tubular pins
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
