Extremely quick
with very large forming surfaces, easy and simple lowering with short distances
-
Extremely safe
through a remote-controlled moving procedure of the tables from a safe position on the concreted slab
-
Extremely adaptable
through project-specific, individual planning
Applications
-
SKYTABLE, the slab table for a maximum area of 150 m².
-

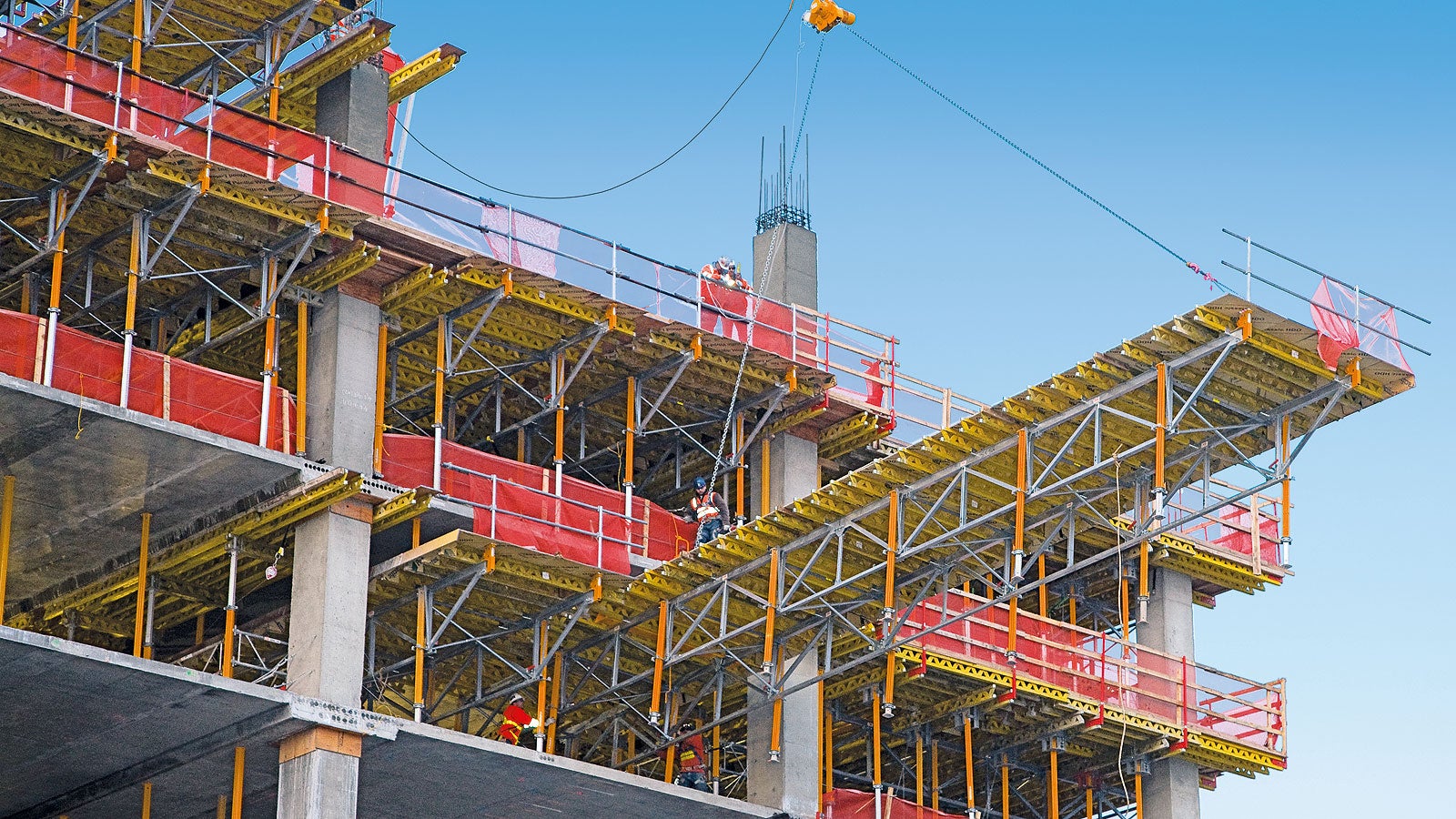

The crane pulls the table horizontally out of the building with the help of the lifting mechanism and the single roller. Workers are not required to stand on the table at any time.
-

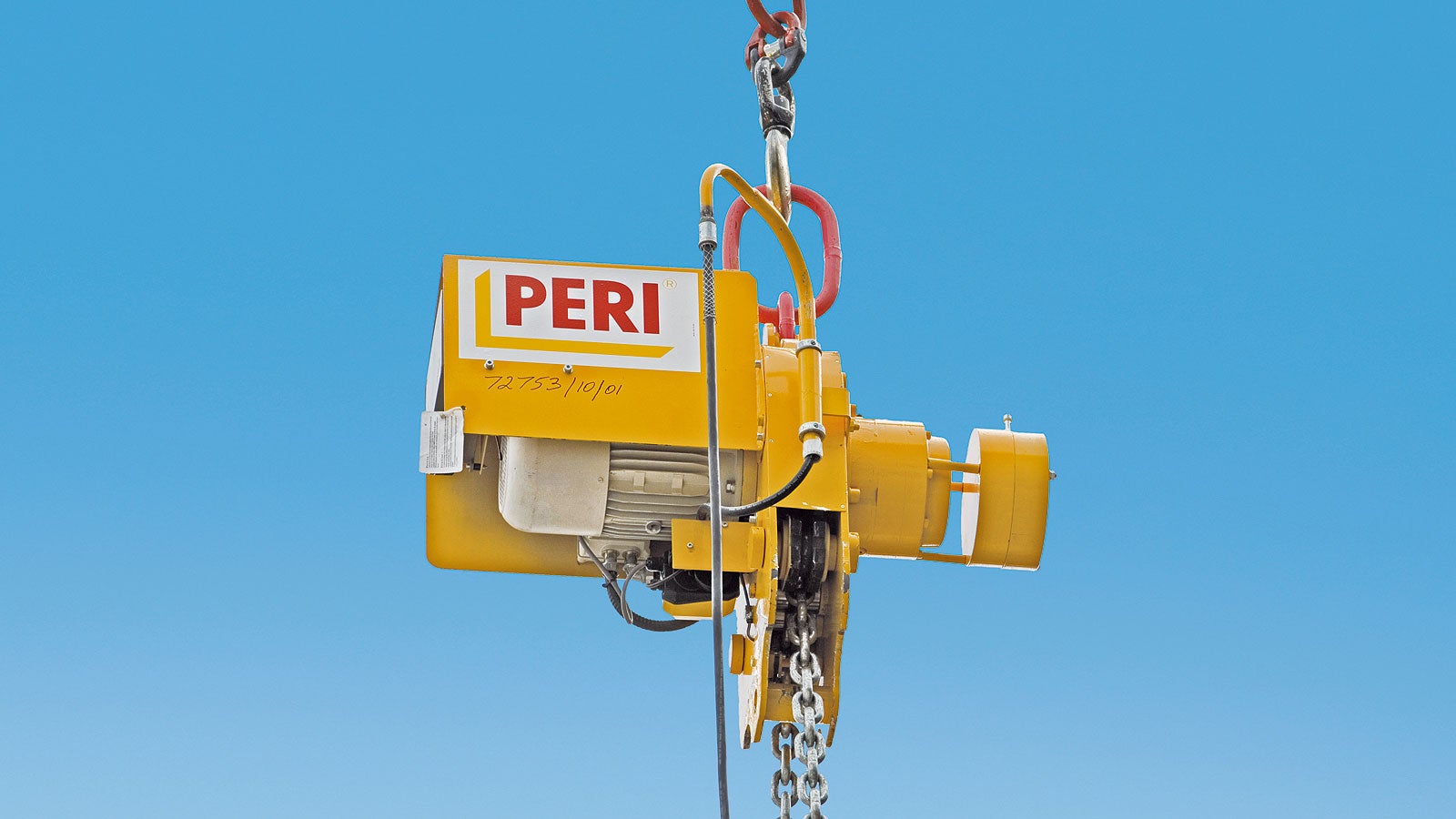

The STM lifting unit is radio-controlled and keeps the slab table in a horizontal position during the moving process.
Product Data Sheet
Product Data Sheet
System type
Slab Formwork
Dimensions
Element widths: 1.80 m to 6.10 m wide with 2 trusses, 6.00 m to 9.00 m wide with 3 trusses,
Element lengths: 6.00 m to 24.40 m long with 2 trusses, 9.00 to 15.00 m long wide with 3 trusses
Area/Support
Project-related planned slab table with areas of up to 150 m²
Slab thickness
up to 40 cm
