VARIOKIT VST Heavy-Duty Tower in action
-

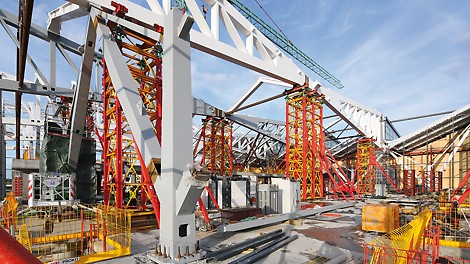

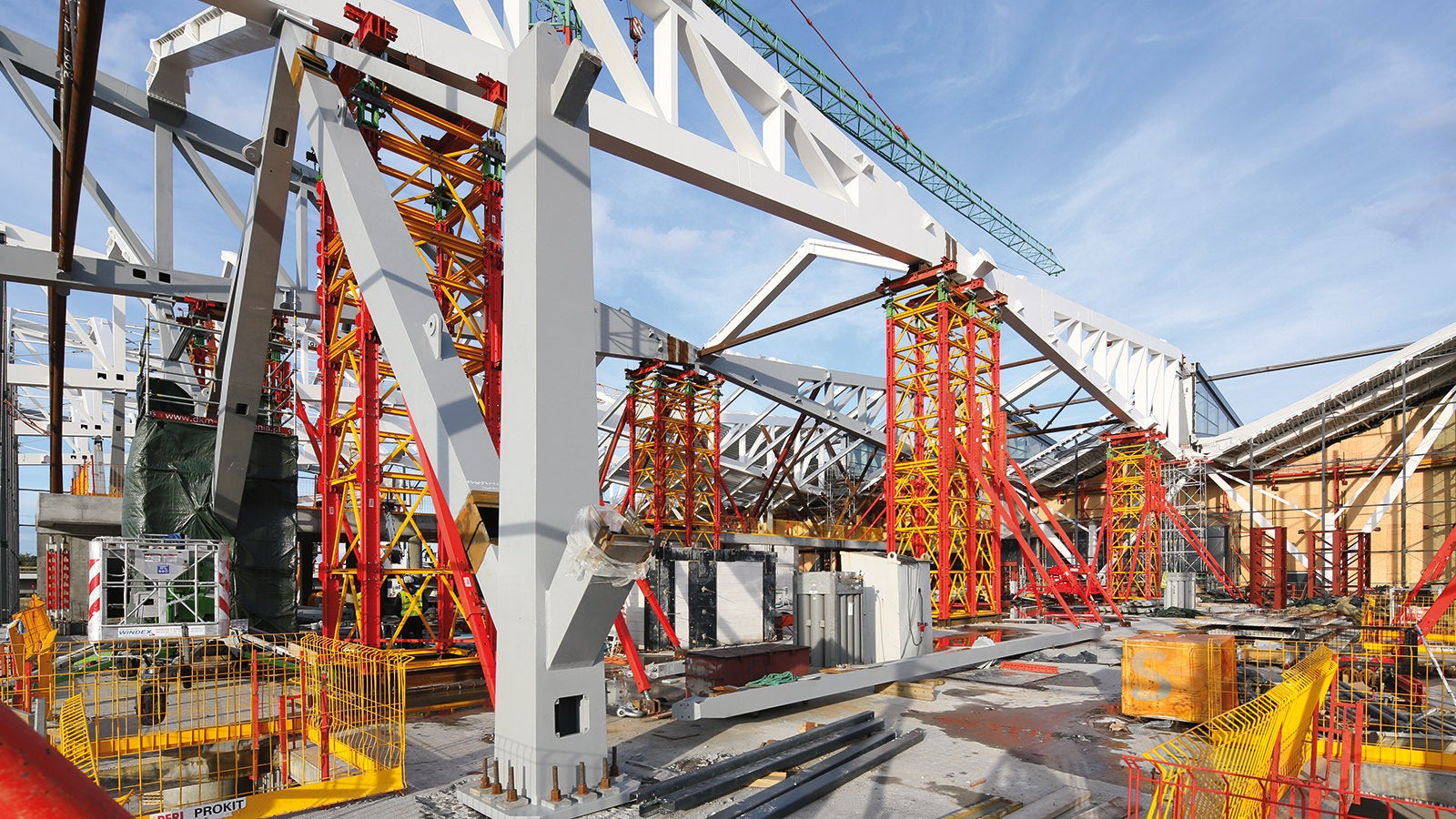

![VARIOKIT Heavy-Duty Shoring Towers as a temporary supporting structure during the assembly of a steel hall at an airport terminal.]( "VST Heavy Duty Tower")
Fast assemblywith bolted connections and pre-assembled tower segments up to 10 m.
-

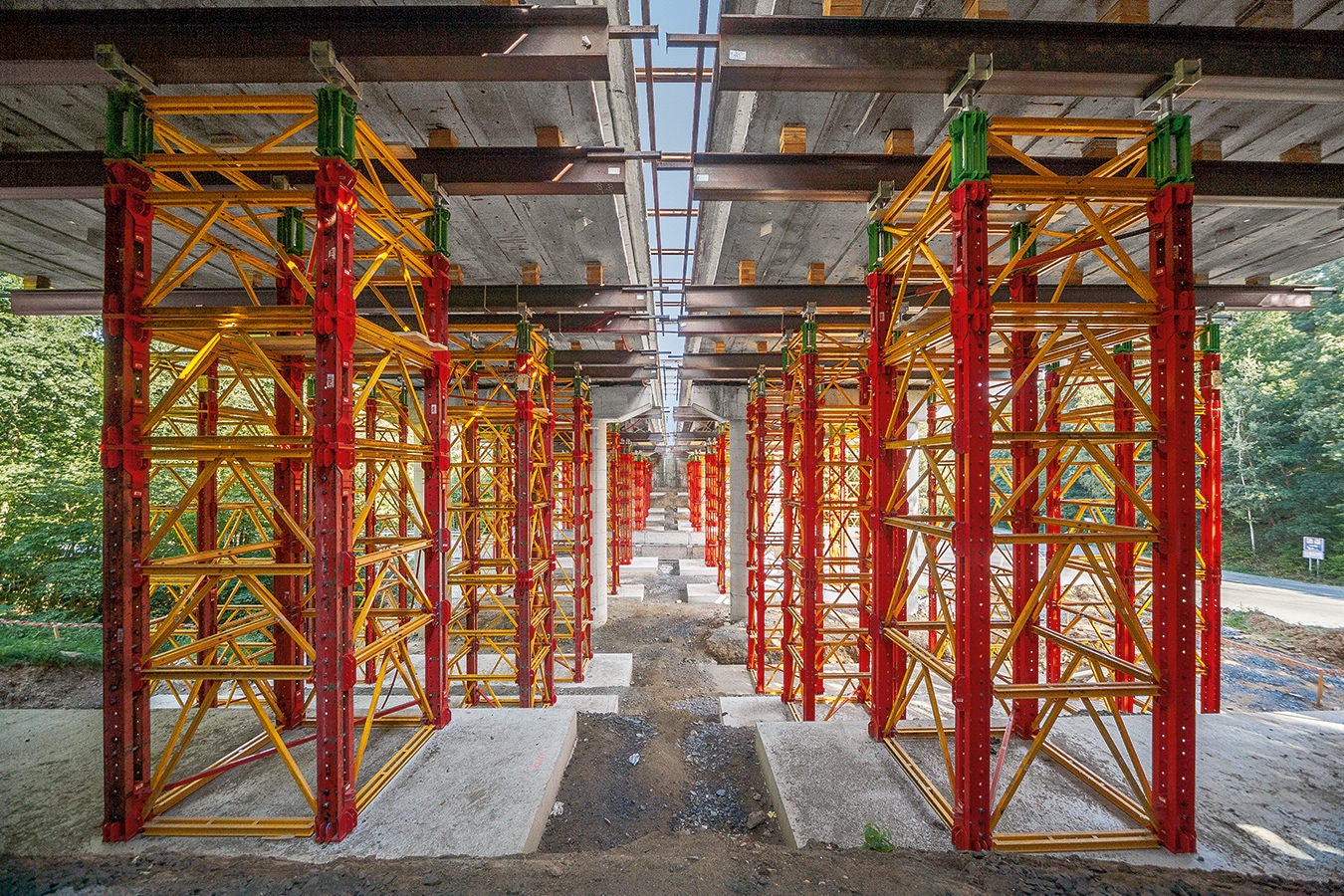

![Load-bearing: VST Heavy-Duty Shoring Towers on the basis of the VARIOKIT Engineering Construction Kit safely carry up to 700 kN per leg.]( "VST Heavy Duty Tower")
Cost-effective solutionas all system components are available in the PERI rental parks.
-

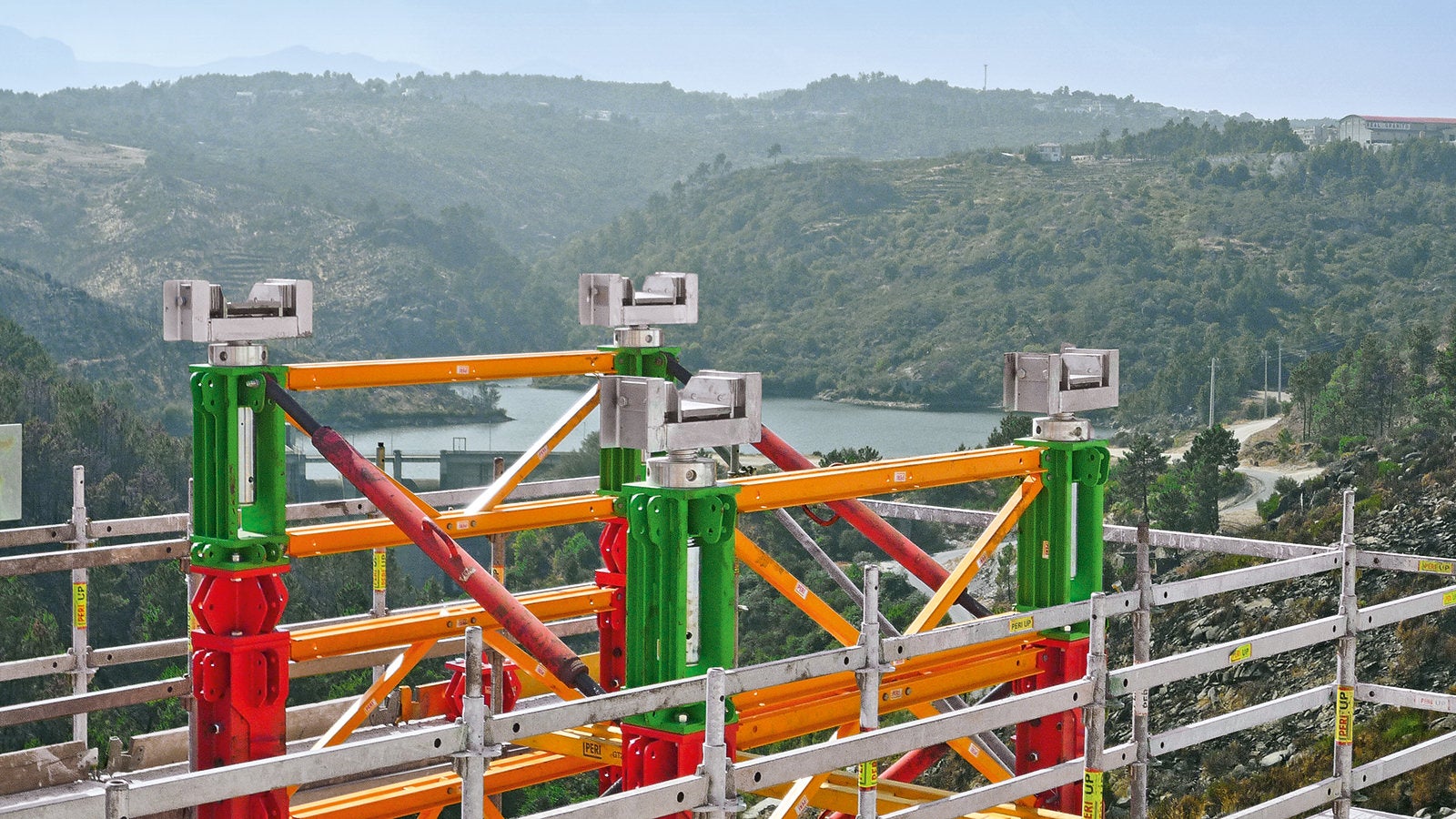

![The heavy shoring tower can also be easily raised and lowered when loaded – thanks to the head spindle and mobile hydraulics.]( "VST Heavy Duty Tower")
Simple height adjustmentthrough moving hydraulics with which the head spindle can be operated when under full load.
Variations
Through the incorporation of standardised system components, it is possible to create various shoring systems:
4-leg towers
Dimensions of 2 m x 2 m in its standard configuration. Or in each statically required dimension up to a max. of 6.50 m x 6.50 m
Towers with additional legs
In areas that have to bear heavy loads, the load-bearing capacity can be doubled in-situ through the use of additional legs.
Birdcage scaffold
By connecting individual shoring tower frames, it is also possible to increase the cross-sectional stiffness in the second direction.
Main beam frames
In the area of abutments and piers, the system can also be implemented as main beam frames up to a height of 10 m, but only with the head support.
