International Airport Parking Garage
El Paso, United States

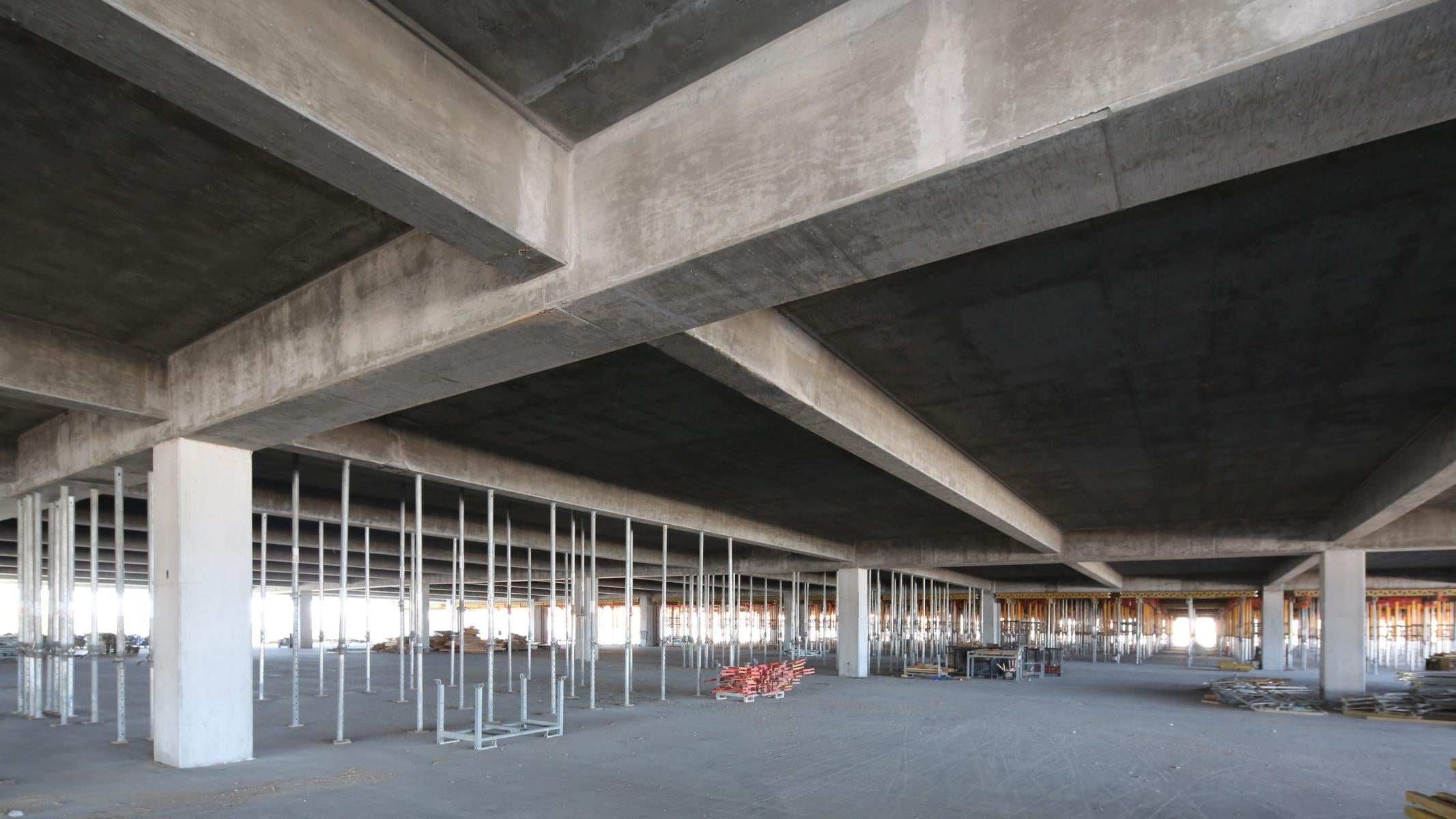

The new Consolidated Rental Agency Complex opening in the spring of 2016 at the El Paso International Airport will nearly triple the facility’s car rental capacity. The 3-story cast-inplace structure is being built adjacent to the terminal on an 18-acre site that was previously surface parking.

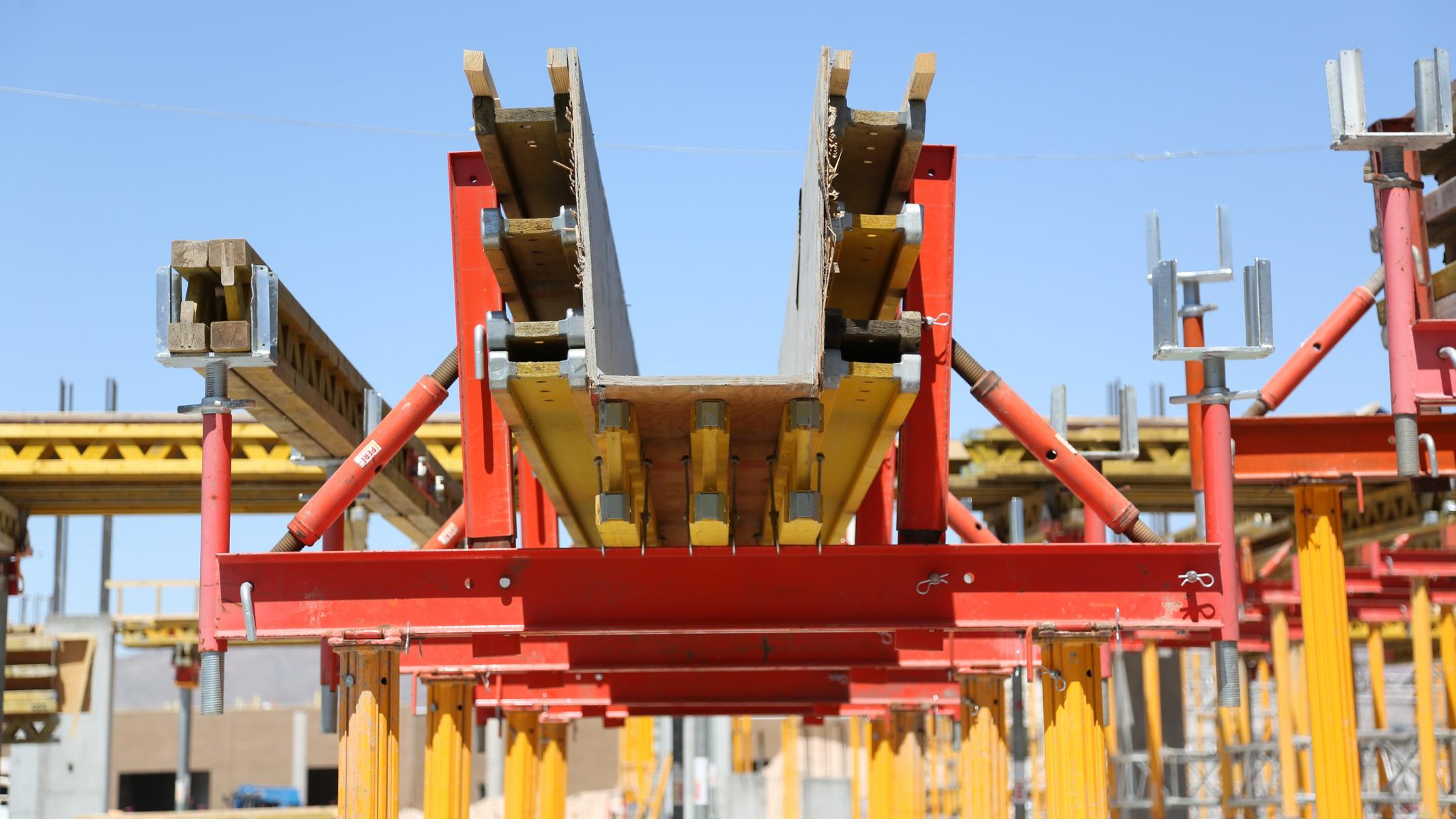

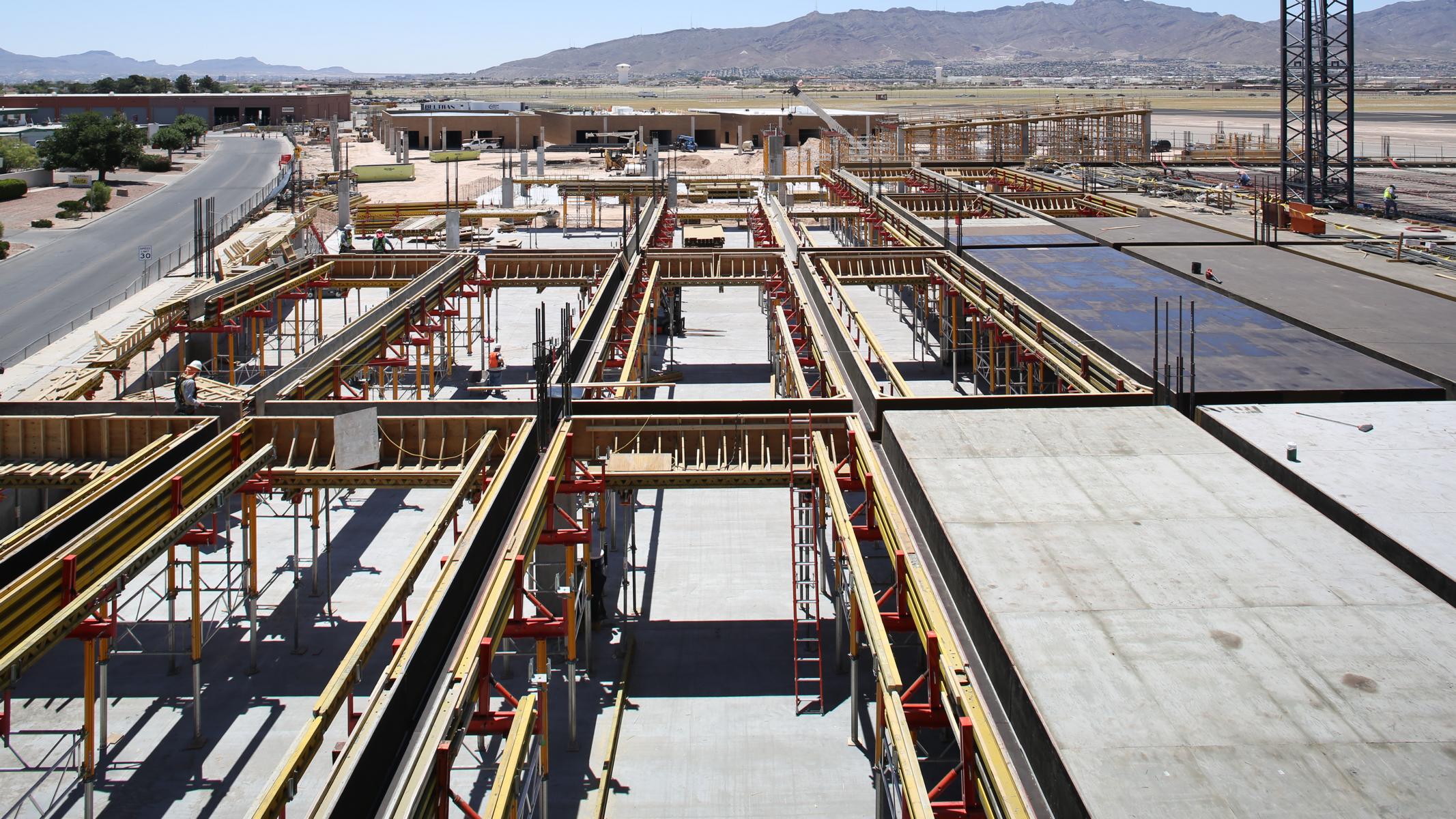

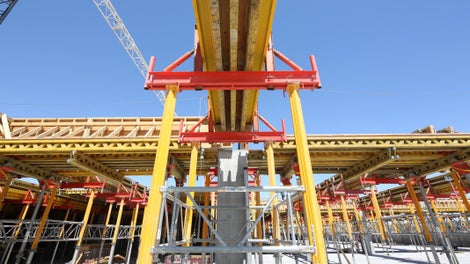

Local contractor Arrow Building Corp. is using the MULTIFLEX system to form the 6” and 7” post-tensioned slabs and GARAGEDECK components to construct 40” deep girder beams, located 60’ apart, and the 32” deep garage beams they support, which are typically on 30’ centers. The beam forms are preassembled at a PERI warehouse using 100% rentable components and delivered to the jobsite ready for use. As an extension of the MULTIFLEX system, GARAGEDECK beam tables are sized and configured to allow placing concrete for the slabs and beams at the same time.

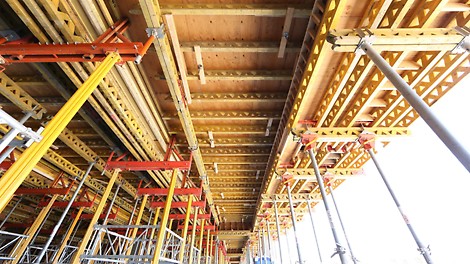

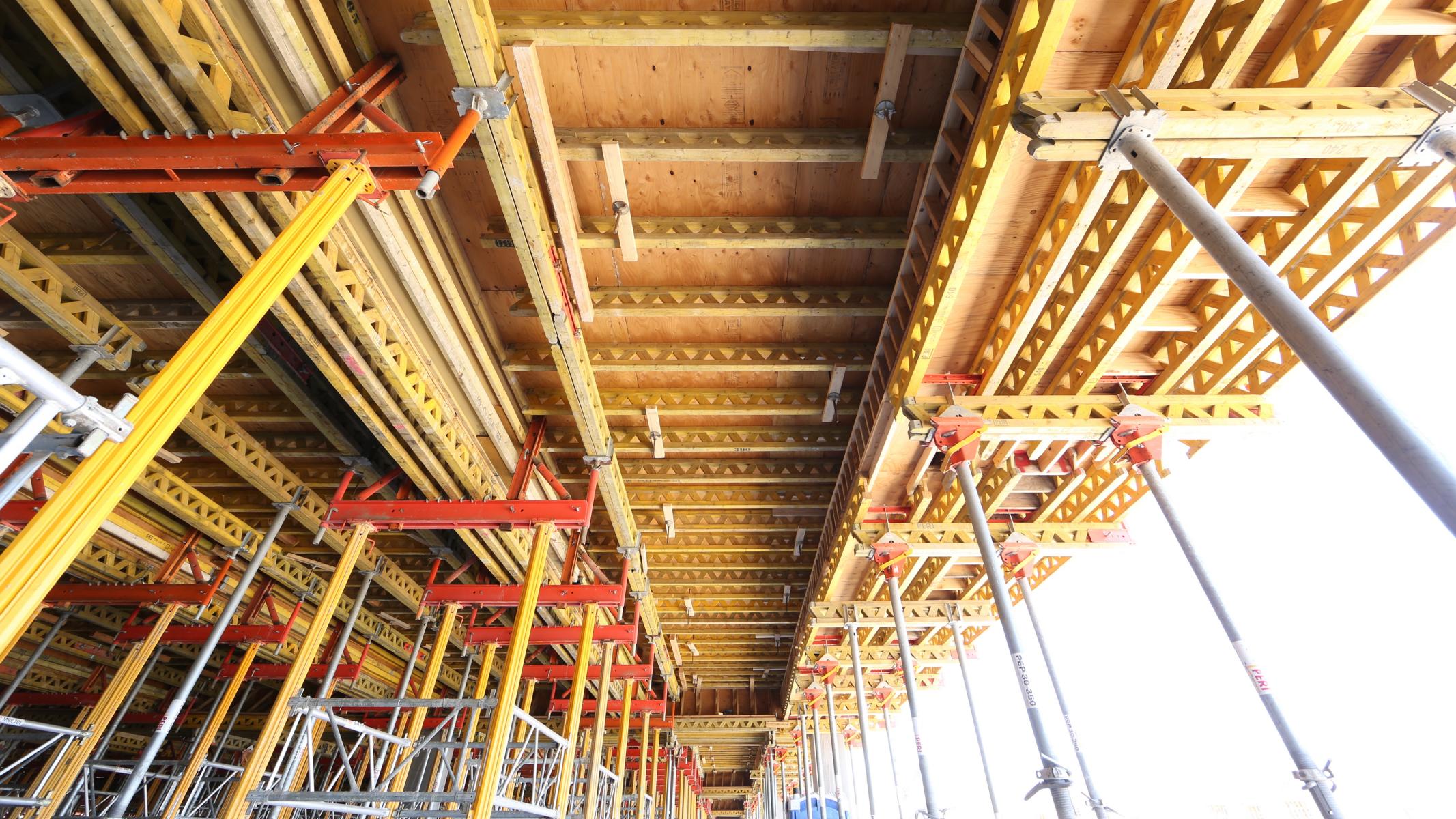

Because rolling beam tables speed up and simplify moving the forms from one location to the next, with no disassembly, Arrow is able to work with smaller crews. Both GARAGEDECK and the MULTIFLEX system use MULTIPROP shores, but because the GARAGEDECK beam tables  support the slab tables, fewer shores are required. The result: much more open work area.

Customer
Arrow Building Corporation
